Trijicon Ascent 3-12x40 Riflescope BDC Target Holds Reticle
Trijicon Ascent 3-12x40 Riflescope BDC Target Holds Reticle
Couldn't load pickup availability

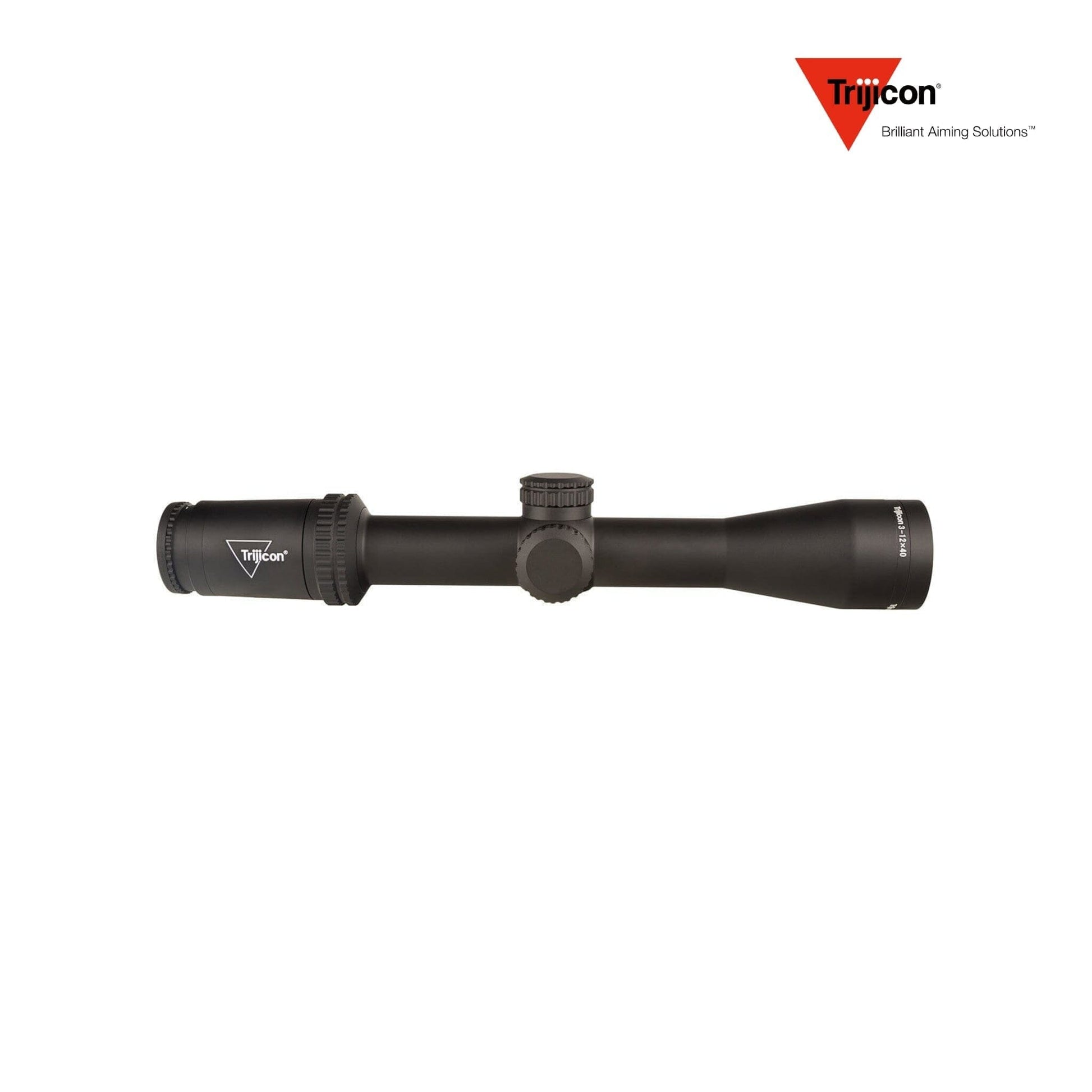

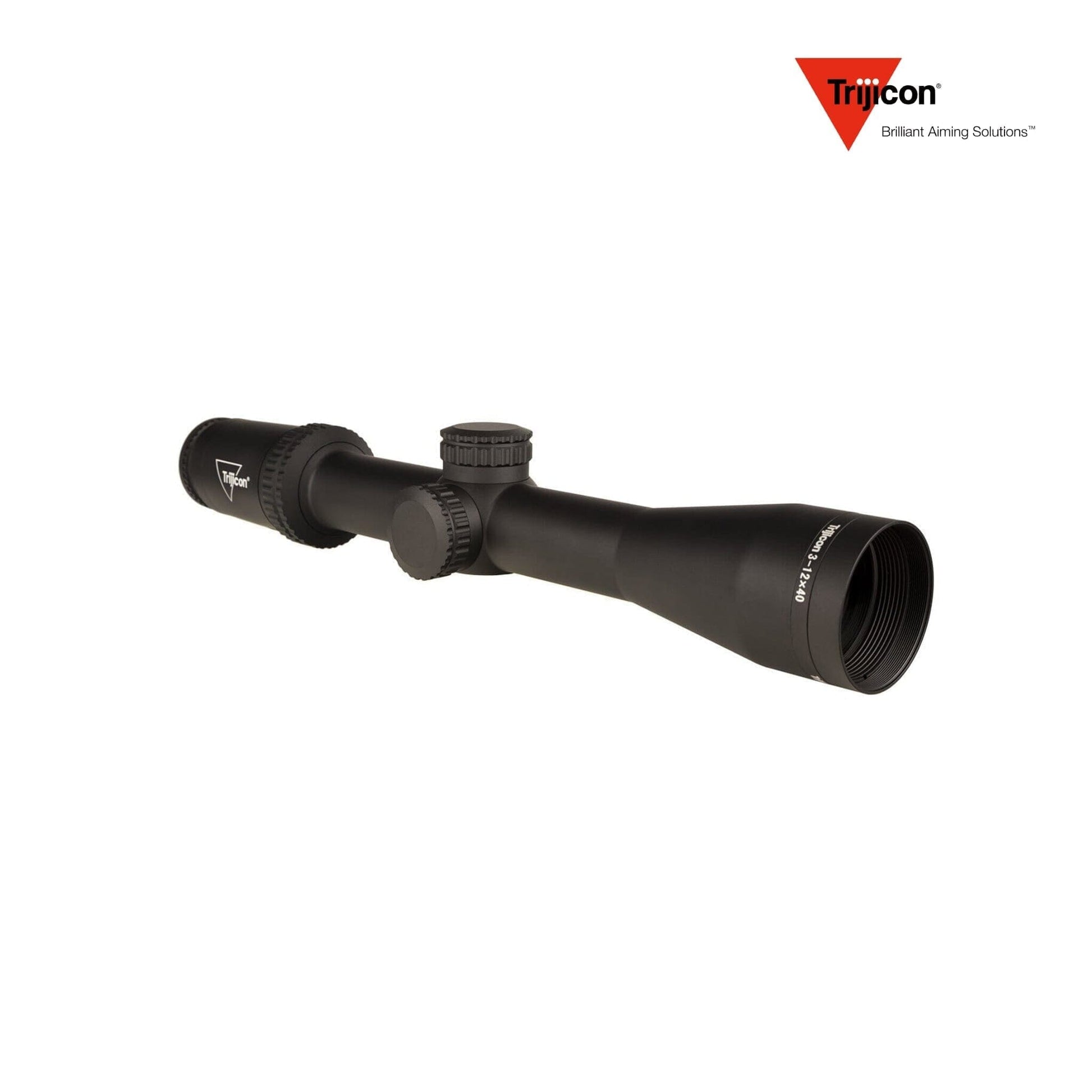

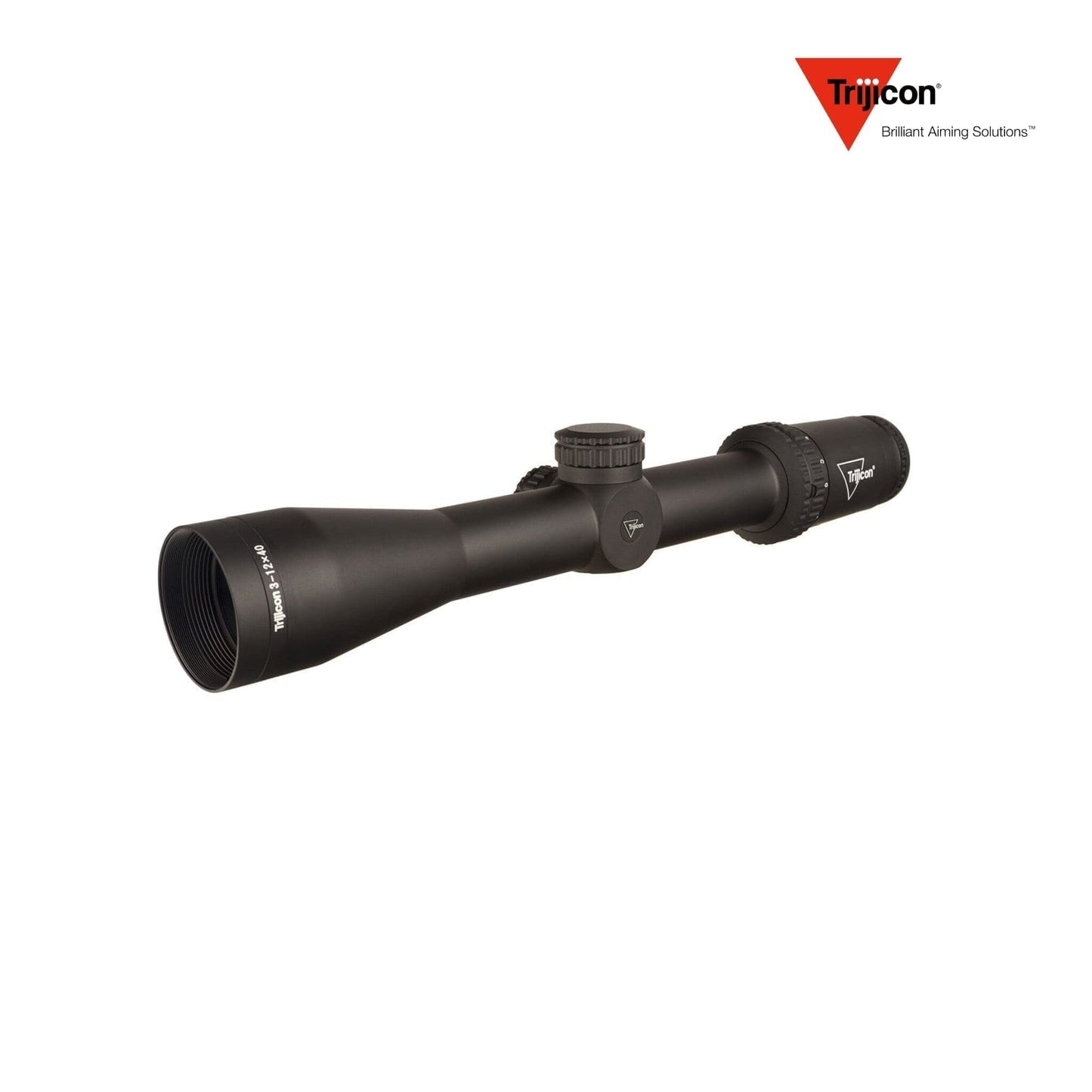

Trijicon Ascent 3–12×40 Riflescope BDC Target Holds Reticle
Features
- Versatile 3–12× LPVO: Combines fast target acquisition at 3× with long-range precision at 12×—ideal for a wide range of shooting disciplines.

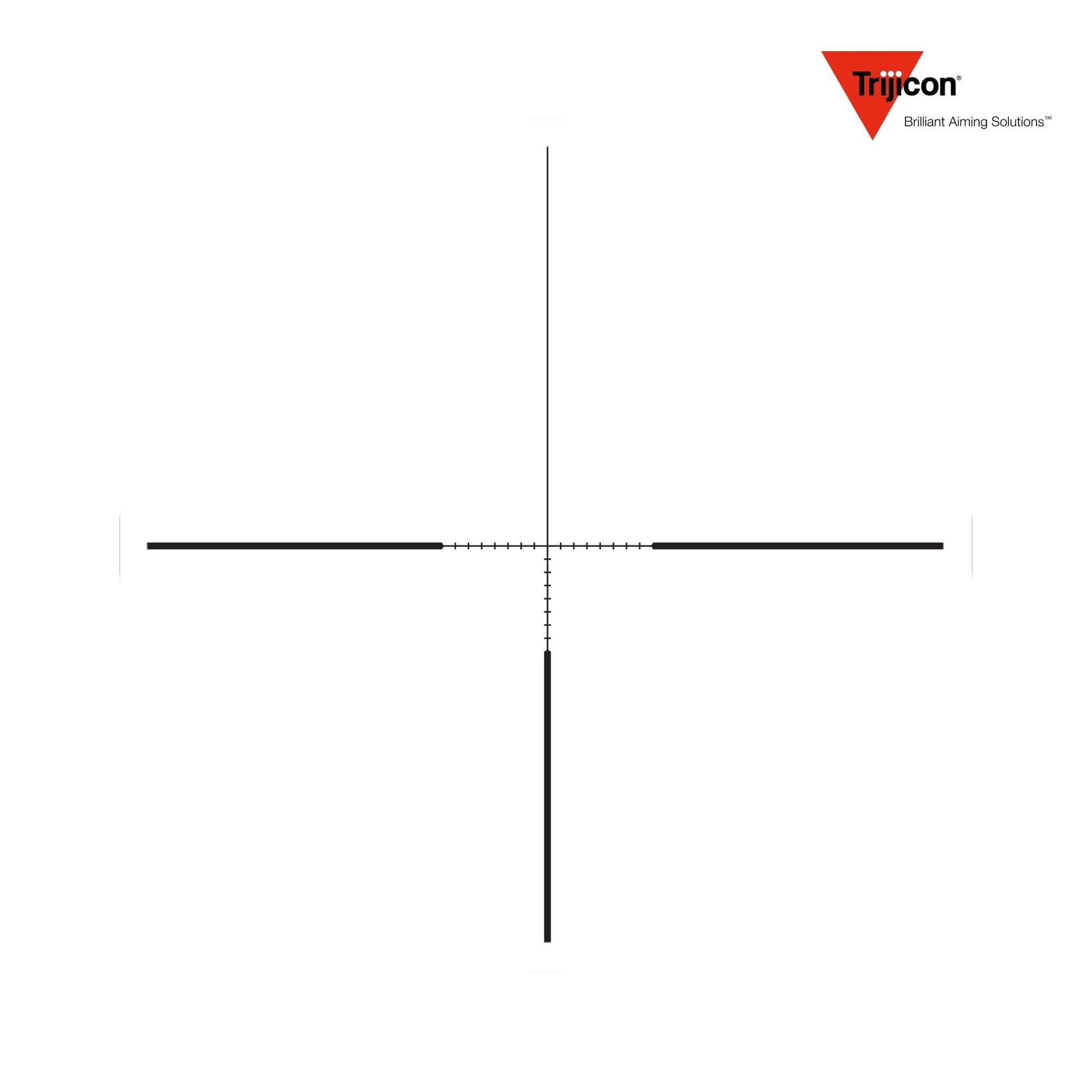

- BDC Target Holds Reticle (SFP): Clean ballistic holdover marks with windage dots allow quick engagement across varied distances.
- Edge-to-Edge Clarity: Fully multi-coated broadband glass delivers excellent light transmission and clear visuals without distortion.
- Rugged 30 mm 6061‑T6 Tube: One-piece aircraft-grade aluminum build—waterproof, fog-proof, and recoil-resistant.
- Capped ¼‑MOA Low-Profile Turrets: Windage and elevation give crisp adjustments (70 MOA total travel) and maintain zero effectively.
- Wide Field of View: 36.3 ft at 3× down to 9.1 ft at 12× enables quick target scanning.
- Nitrogen-Purged & Waterproof: Designed to withstand moisture and temperature extremes—sealed and prepped for field use.
- Fast-Focus Eyepiece: Rapid diopter adjustment enhances clarity for diverse users.
- Made in Japan, Backed by Trijicon Warranty
Technical Specifications for Trijicon Ascent 3–12×40 Riflescope BDC Target Holds Reticle
Specification |
Details |
Manufacturer |
Trijicon |
Model / MPN |
AT1240‑C‑2800002 |
SKU |
AT1240‑C‑2800002 |
UPC |
719307402973 |
Country of Origin |
Japan |
Magnification Range |
3–12× variable |
Objective Lens Diameter |
40 mm |
Tube Diameter |
30 mm |
Reticle |
BDC Target Holds (Second Focal Plane) |
Illumination |
None (non-illuminated) |
Eye Relief |
2.2″–3.2″ (≈56–81 mm) |
Field of View @ 100 yd |
36.3–9.1 ft |
Exit Pupil |
13.2–3.4 mm |
Adjustment Click Value |
¼ MOA |
Total Adjustment Range |
70 MOA elevation & windage |
Parallax |
Fixed at 100 yd |
Overall Length |
12.55″ (≈318 mm) |
Weight |
17.8 oz (≈504 g) |
Housing / Finish |
6061‑T6 aluminum; matte black hard anodized |
Optical Coatings |
Fully multi-coated glass |
Waterproof / Fog-Proof |
Waterproof to 10 ft (~3 m); nitrogen-purged |
Shock Resistance |
Recoil-rated for service use |
Mount Compatibility |
Standard 30 mm rings (not included) |
Included Accessories
- Trijicon Ascent 3–12×40 Riflescope – AT1240‑C‑2800002
- Lens caps
- Scopecoat
- Quick-reference guide & owner’s manual
- Trijicon logo sticker
- Warranty card
