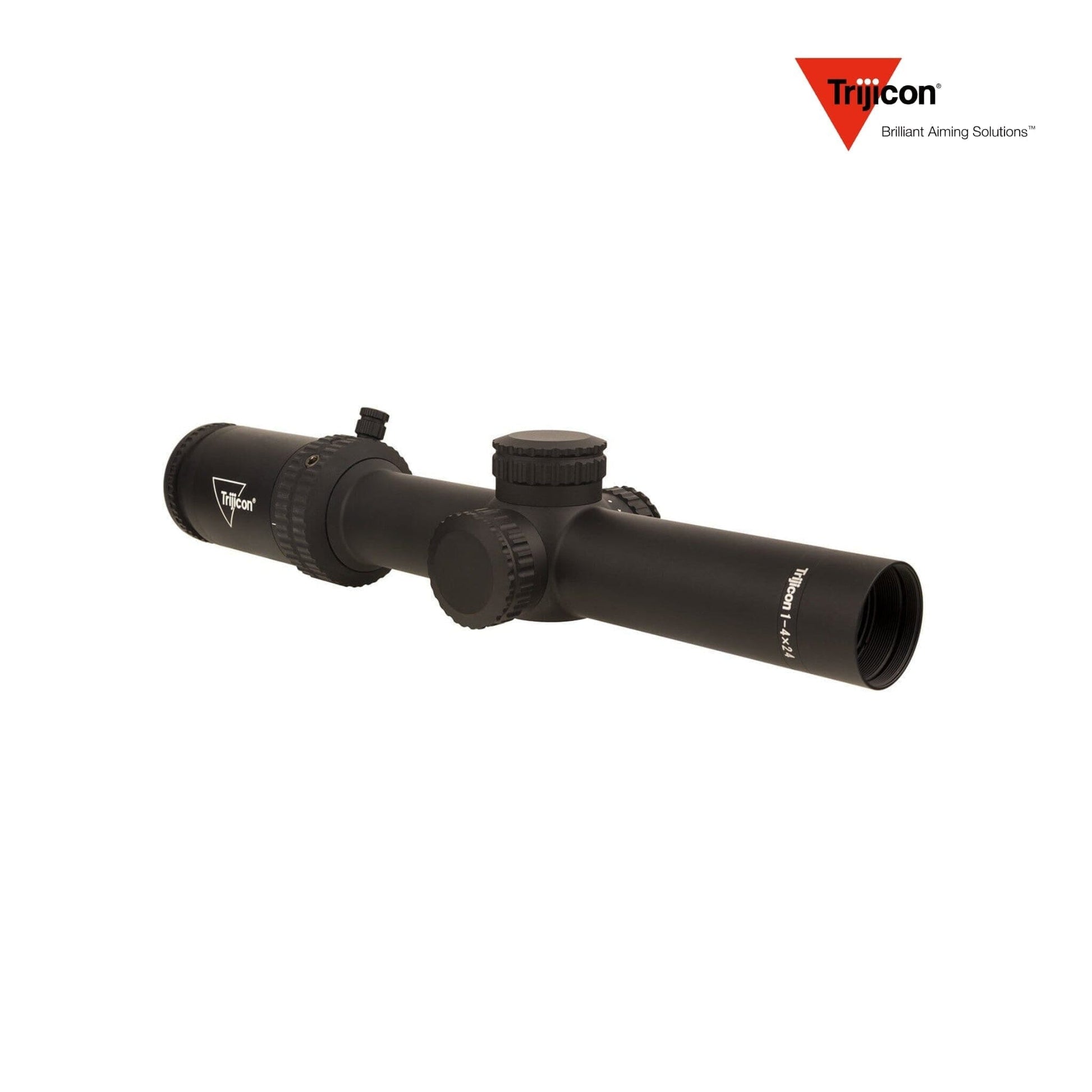

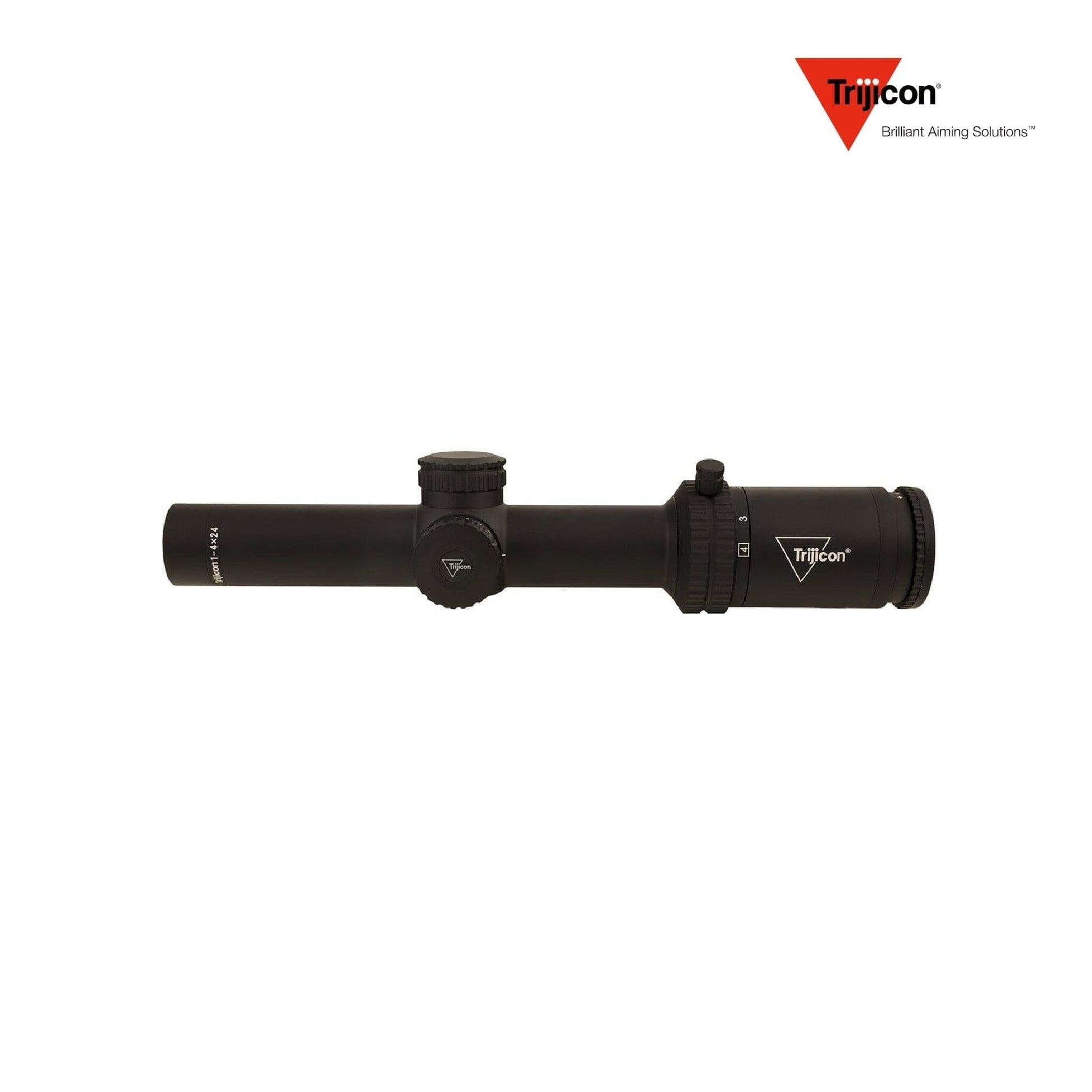

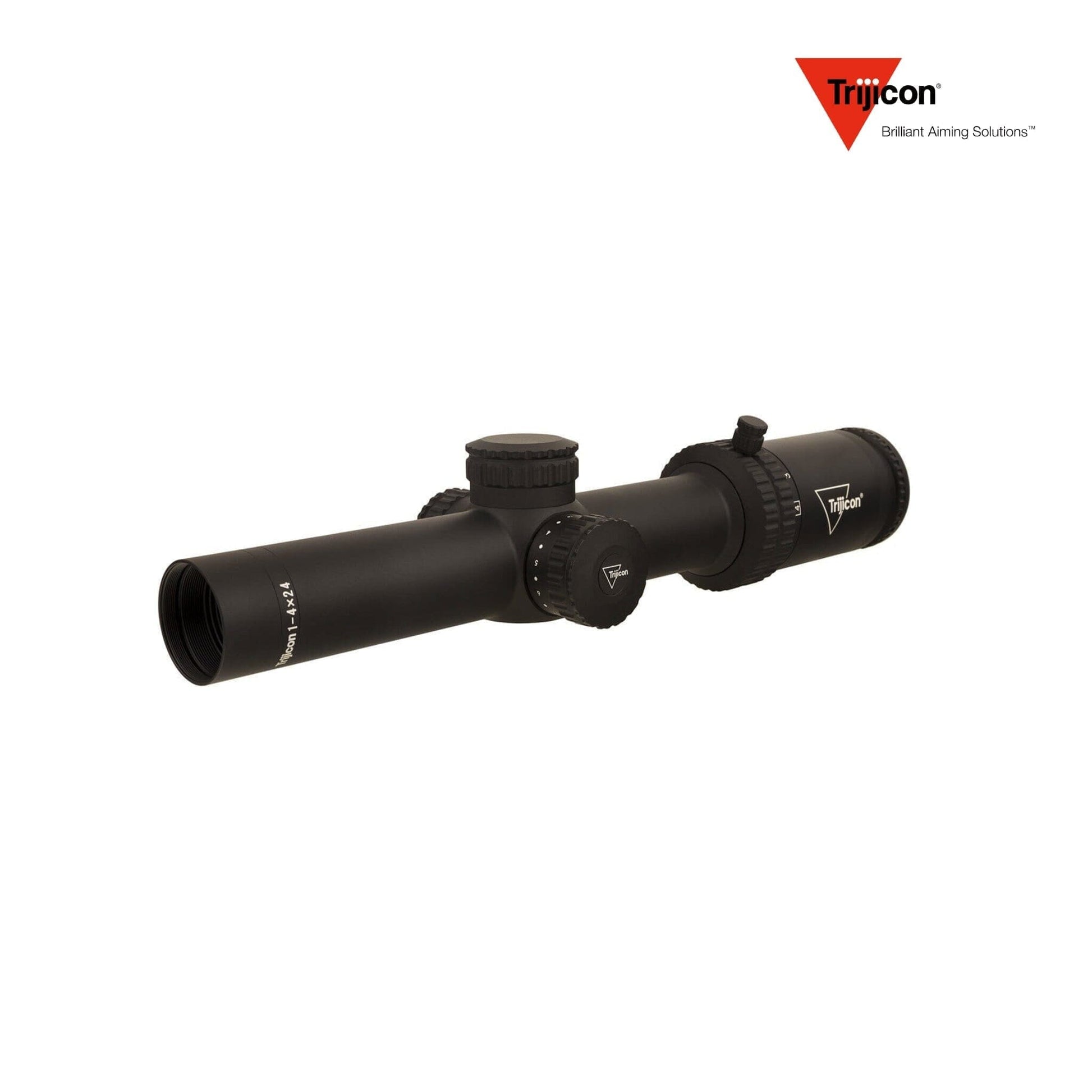

Trijicon Credo 1-4×24 Riflescope Green MRAD Ranging Reticle
Features
- True 1–4× LPVO: Offers fast target acquisition at 1× with precision reach at 4× for versatile shooting scenarios.

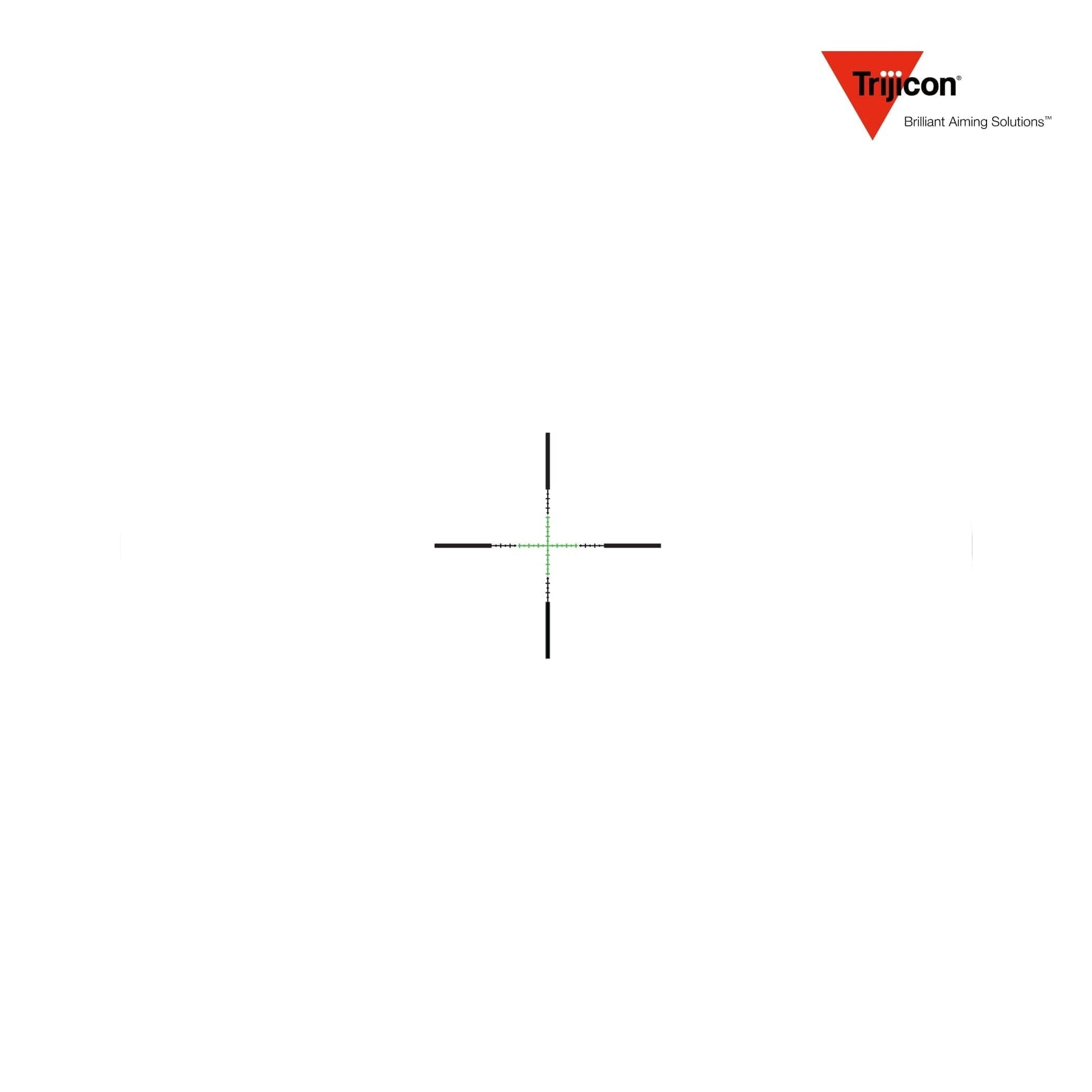

- Green MRAD Ranging Reticle: Illuminated segmented circle with 0.1 MRAD aiming/distance holds — ideal for range estimation and engagement.
- LED Illumination with 10 Levels: Adjustable brightness options with off positions between each to prevent accidental activation.
- Wide Edge‑to‑Edge Optics: Fully multi‑coated broadband glass delivers a wide field and crisp image clarity.
- Aircraft‑Grade 30 mm Tube: One-piece 6061‑T6 aluminum housing that's durable, waterproof, fog-proof, and shock-resistant.
- Low‑Profile Capped Turrets: 0.1 MRAD click turrets, 29.1 MRAD per side, protected with screw caps.
- Fast-Focus Eyepiece: Quick and precise diopter adjustment to optimize your sight picture.
- Bindon Aiming Concept (BAC): Enables both-eyes-open engagement for rapid target acquisition.
- Compact, Field-Ready Design: Measuring just 10.5″ and weighing about 17.1 oz, it's lightweight and maneuverable.
- Made in Japan & Backed by Trijicon Warranty
Technical Specifications for Trijicon Credo 1-4×24 Riflescope Green MRAD Ranging Reticle
|
Specification |
Details |
|
Manufacturer |
Trijicon |
|
Model / MPN |
CR424‑C‑2900012 |
|
SKU |
CR424‑C‑2900012 |
|
UPC |
719307402997 |
|
Country of Origin |
Japan |
|
Magnification |
1–4× variable |
|
Objective Lens Diameter |
24 mm |
|
Tube Diameter |
30 mm |
|
Reticle |
Green MRAD Ranging (SFP, LED illuminated) |
|
Reticle Focal Plane |
Second Focal Plane (SFP) |
|
Illumination Source |
LED, 10 brightness levels with off positions |
|
Eye Relief |
2.6″–3.9″ (≈66–99 mm) |
|
Field of View @100 yd |
95 ft (1×) – 24.2 ft (4×) |
|
Exit Pupil |
≈17.5 – 5.1 mm |
|
Adjustment Click Value |
0.1 MRAD |
|
Total Adjustment Range |
±29.1 MRAD windage; ±29.1 MRAD elevation |
|
Parallax Focus |
Fixed at 100 yd |
|
Overall Length |
10.5″ (266.7 mm) |
|
Weight |
17.1 oz (≈485 g) |
|
Housing Material |
6061‑T6 aluminum; matte black anodize |
|
Optical Coatings |
Fully multi‑coated, broadband |
|
Waterproof / Fog‑Proof |
Sealed and nitrogen-purged |
|
Shock Resistance |
Rated for heavy recoil and rugged use |
|
Scope Ring Compatibility |
Standard 30 mm rings |
Included Accessories
- Trijicon Credo 1–4×24 Riflescope – CR424‑C‑2900012
- Bikini-style flip-up lens covers
- Scopecoat (soft cover)
- 3 mm hex key (for turret caps)
- CR2032 battery
- Lens cloth
- Quick-reference guide & owner’s manual
- Trijicon logo sticker
- Warranty registration card
