Trijicon Credo 1-4x24 Riflescope Red BDC Segmented Circle .223/55gr Reticle
Trijicon Credo 1-4x24 Riflescope Red BDC Segmented Circle .223/55gr Reticle
Couldn't load pickup availability
Trijicon Credo 1-4x24 Riflescope Red BDC Segmented Circle .223/55gr Reticle
Features
- True 1-4× Low Power Variable Optic (LPVO): Ideal for fast target acquisition at 1× and accurate engagements at 4×.

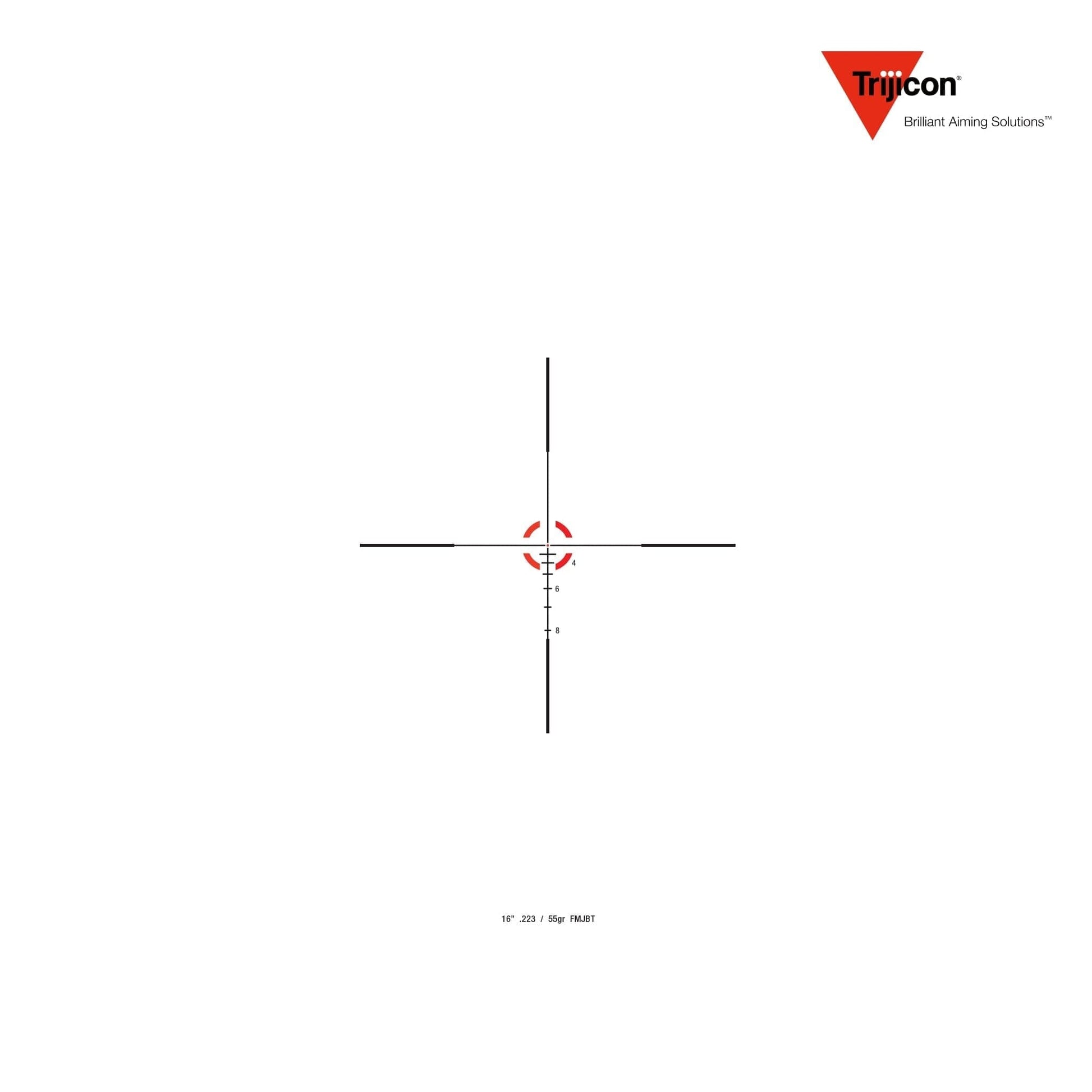

- Red BDC Segmented Circle Reticle: LED-illuminated reticle calibrated for .223 Remington / 5.56 NATO with 55-grain bullets—perfect for AR-platform rifles.
- 10 Brightness Settings with OFF Positions: Allows precise control of illumination in any environment, with OFF detents between each level to prevent accidental activation.
- Excellent Optical Clarity: Fully multi-coated lenses provide bright, crisp, edge-to-edge imagery with high light transmission.
- Rugged, Field-Ready Design: Built from durable 6061-T6 aluminum, the 30 mm tube is waterproof, fogproof, and rated for heavy recoil.
- ¼-MOA Capped Turrets: Tactical-style low-profile capped turrets with precise and repeatable ¼-MOA adjustments.
- Bindon Aiming Concept (BAC): Enables both-eyes-open shooting at low magnification for increased speed and situational awareness.
- Compact & Lightweight: At just 10.5″ long and 17.1 oz, it’s optimized for fast-moving, close-to-mid-range engagements.
- Made in Japan & Backed by Trijicon’s Warranty
Technical Specifications for Trijicon Credo 1-4x24 Riflescope Red BDC Segmented Circle .223/55gr Reticle
|
Specification |
Details |
|
Manufacturer |
Trijicon |
|
Model / MPN |
CR424-C-2900013 |
|
SKU |
CR424-C-2900013 |
|
UPC |
719307403000 |
|
Country of Origin |
Japan |
|
Magnification |
1–4× variable |
|
Objective Lens Diameter |
24 mm |
|
Tube Diameter |
30 mm |
|
Reticle |
Red BDC Segmented Circle (.223/55gr) – LED illuminated, Second Focal Plane |
|
Illumination Source |
LED, 10 brightness settings with intermittent OFF positions |
|
Eye Relief |
2.6″–3.9″ (≈66–99 mm) |
|
Field of View @ 100 yd |
95 ft (1×) – 24.2 ft (4×) |
|
Exit Pupil |
17.5 mm (1×) – 5.1 mm (4×) |
|
Adjustment Click Value |
¼ MOA |
|
Total Adjustment Range |
100 MOA windage / 100 MOA elevation |
|
Parallax Setting |
Fixed at 100 yd |
|
Overall Length |
10.5″ (266.7 mm) |
|
Weight |
17.1 oz (485 g) |
|
Housing Material / Finish |
6061-T6 aluminum / matte black hard anodized |
|
Optical Coatings |
Fully multi-coated, anti-reflective |
|
Waterproof / Fogproof |
Yes – nitrogen-purged and O-ring sealed |
|
Mount Compatibility |
Fits standard 30 mm rings (not included) |
Included Accessories
- Trijicon Credo 1-4x24 Riflescope – CR424-C-2900013
- Bikini-style flip-up lens covers
- Scopecoat (soft neoprene-style cover)
- 3 mm hex key
- CR2032 battery (pre-installed)
- Lens cleaning cloth
- User manual & warranty card
- Trijicon logo sticker
