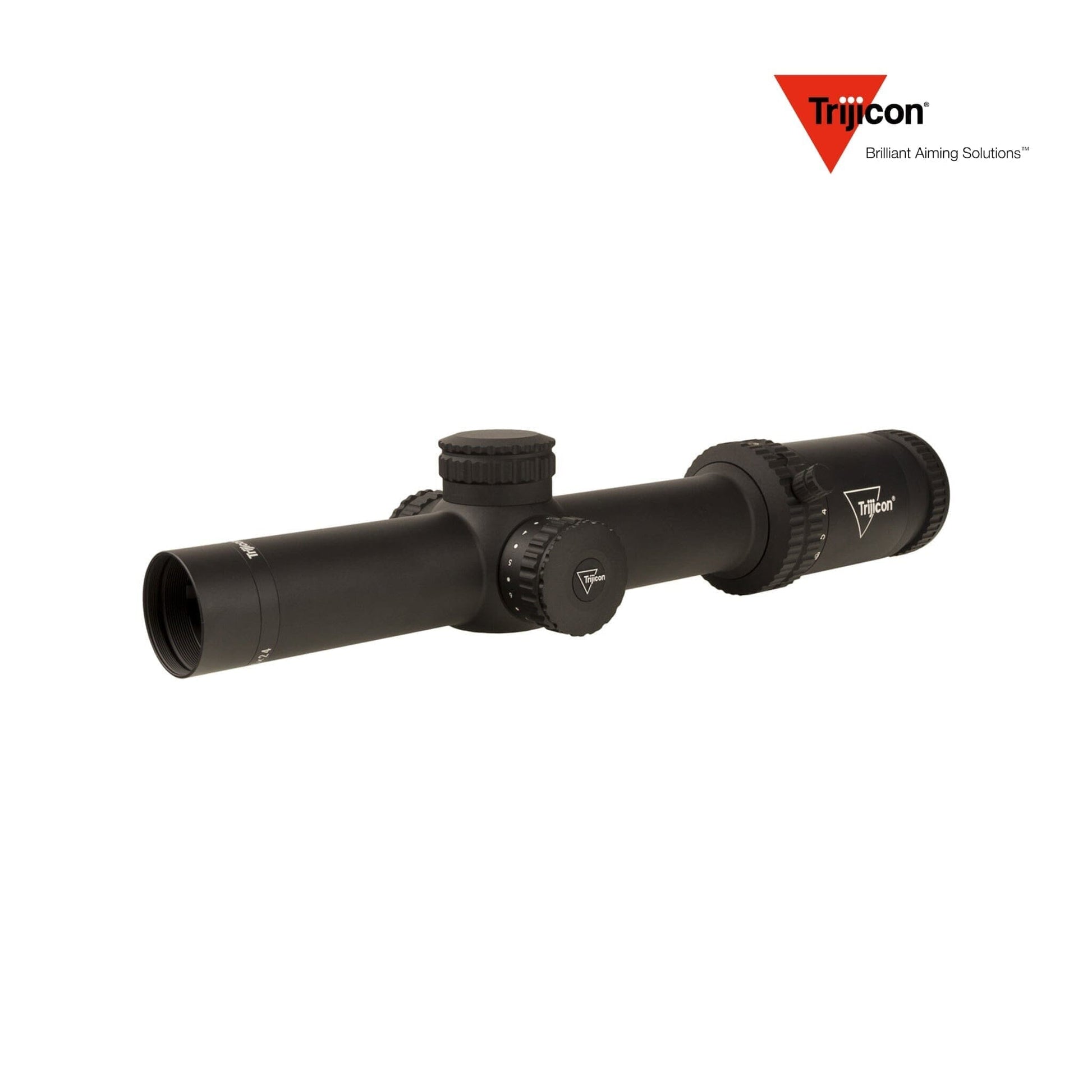

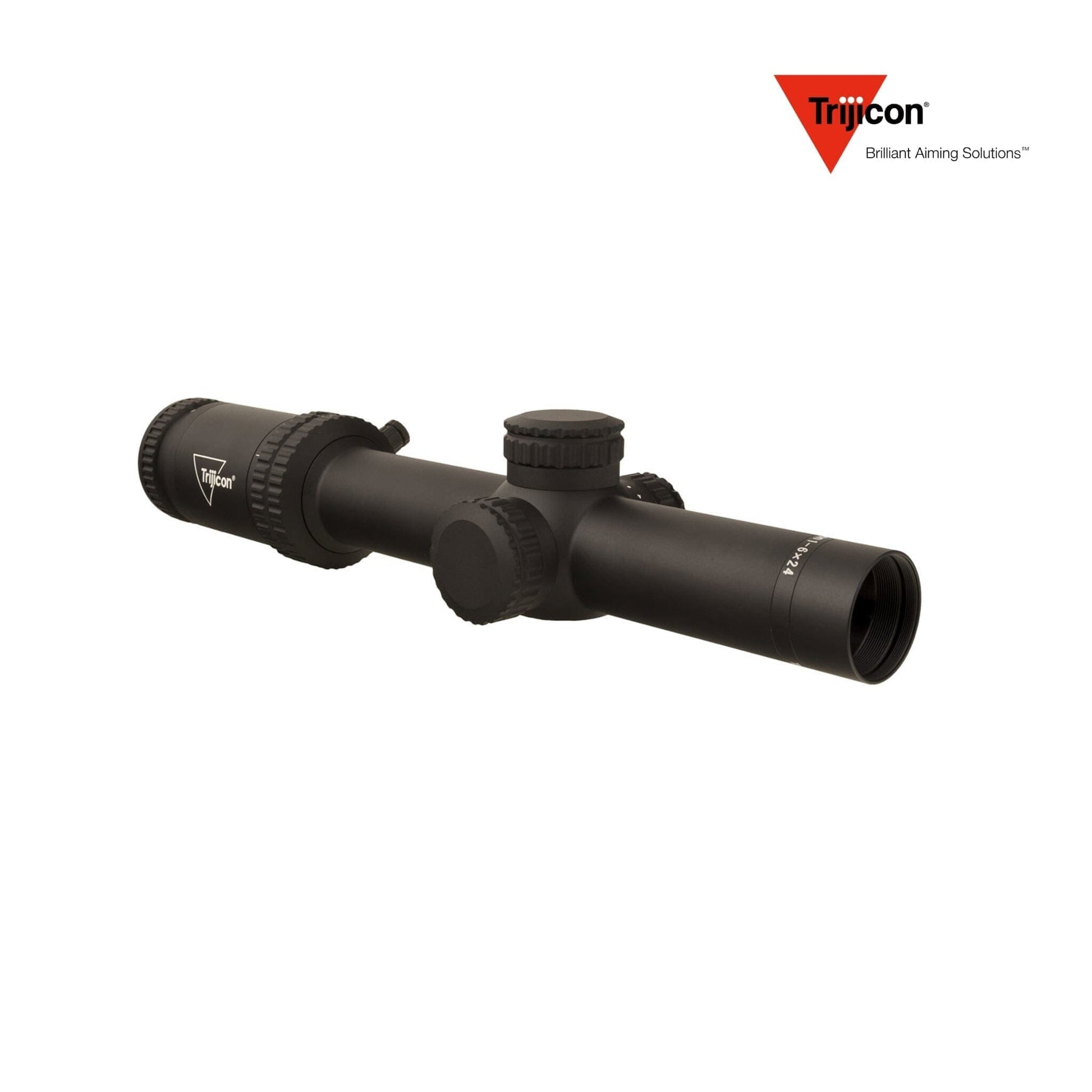

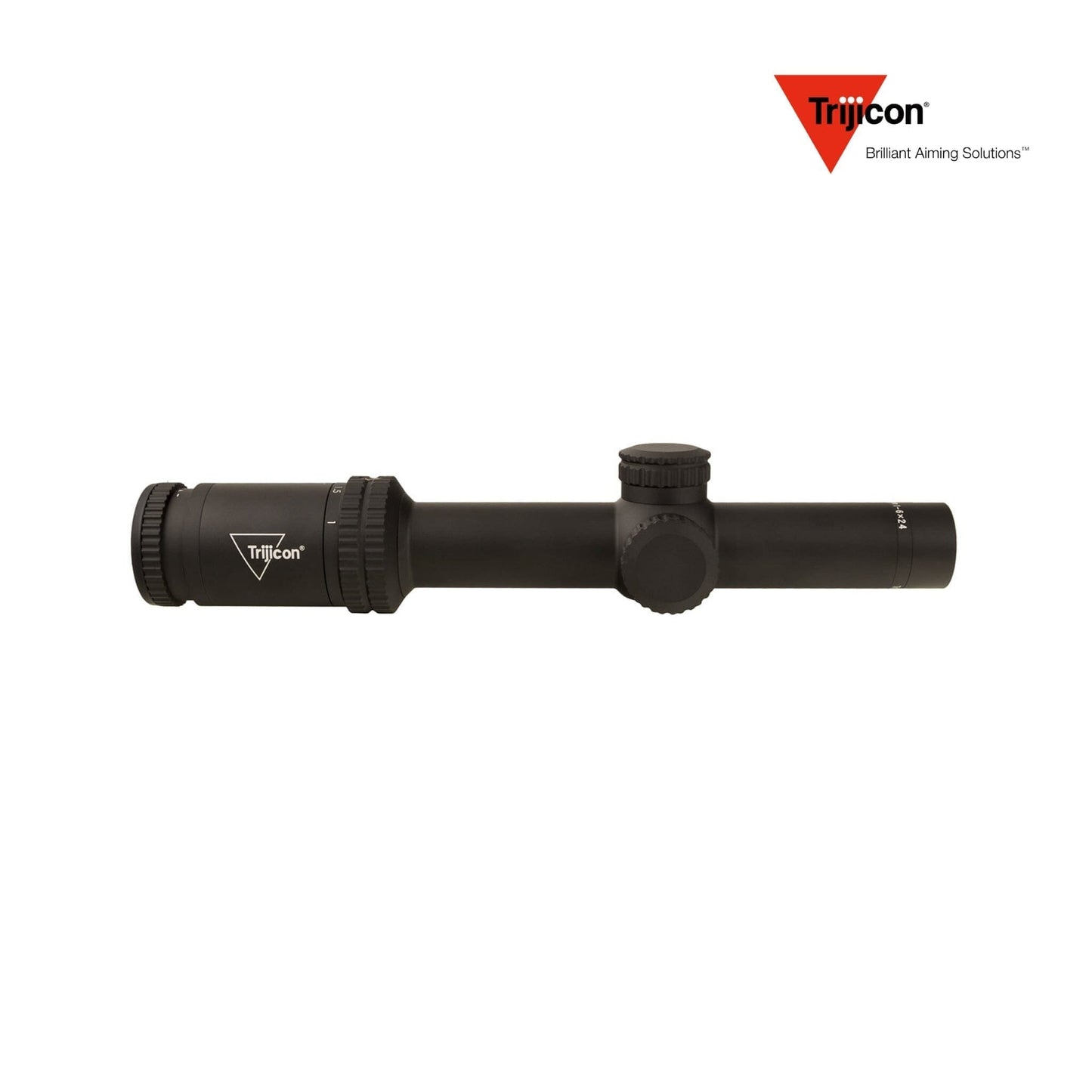

Trijicon Credo 1‑6×24 FFP Riflescope Red MRAD Segmented Circle Reticle
Trijicon Credo 1‑6×24 FFP Riflescope Red MRAD Segmented Circle Reticle
Couldn't load pickup availability
Trijicon Credo 1‑6×24 FFP Riflescope Red MRAD Segmented Circle Reticle
Features
- True 1–6× First Focal Plane (FFP): Enables holdover marks to remain accurate at all magnification levels. Designed for both fast close-range work and precise long shots.

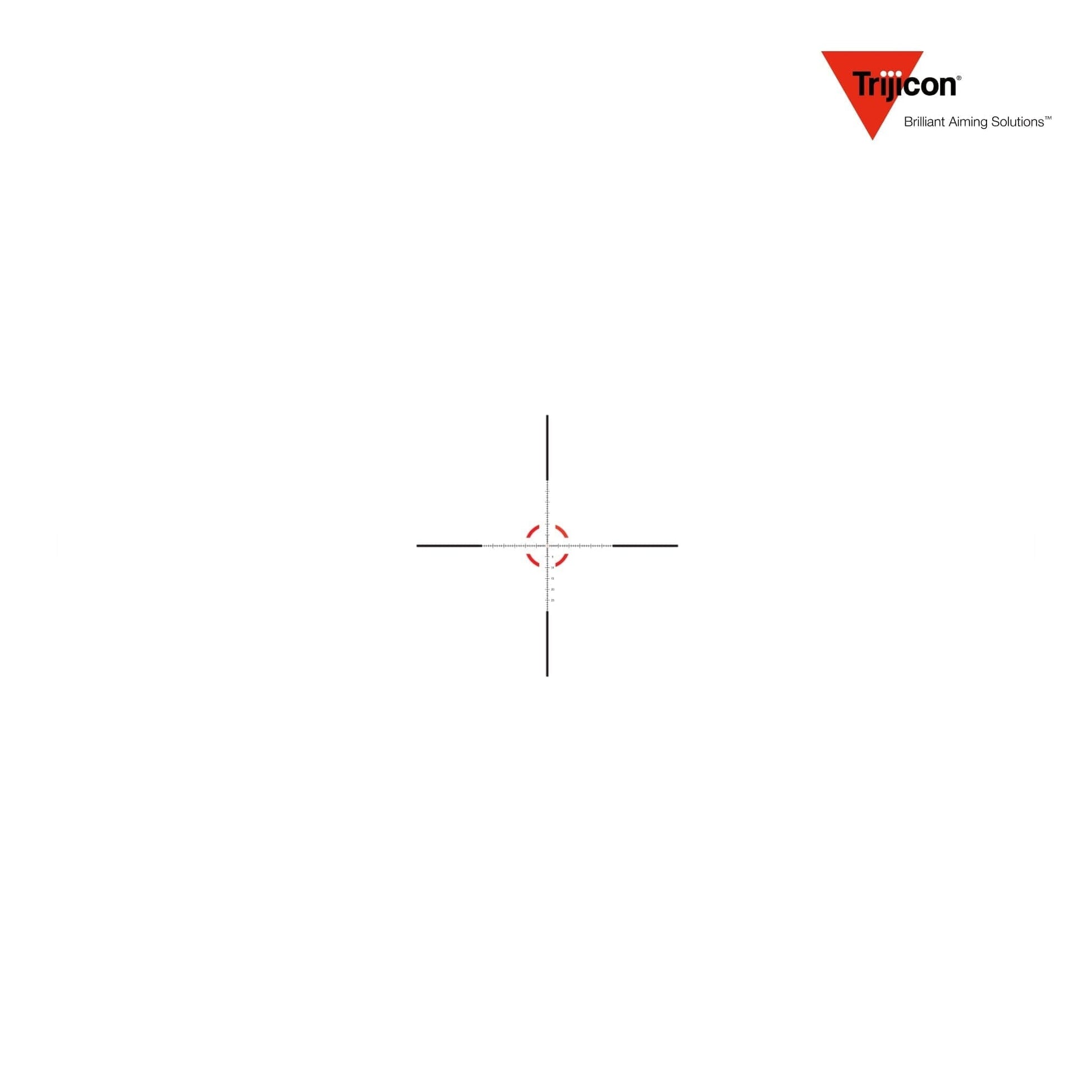

- Red MRAD Segmented Circle Reticle: Illuminated with LED, includes a segmented circle plus explicit 0.1 MRAD holdover dots ideal for advanced ranging and ballistic compensation.
- LED Illumination with 10 Levels: Allows precise reticle brightness control; includes OFF positions between settings.
- Large 30 mm Aircraft-Grade Tube: One-piece 6061‑T6 aluminum construction offers robust recoil and environmental resilience.
- Tactical Low-Capped Turrets: Precision 0.1 MRAD per click adjustments with tactile feedback; ±29.1 MRAD windage and elevation travel.
- Fast-Focus Eyepiece & BAC: Quick diopter adjustment combined with Bindon Aiming Concept for rapid both-eyes-open shooting.
- Wide Field of View: Ranges from ~113.4 ft at 1× to ~18.8 ft at 6× (100 yd), promoting situational awareness.
- Waterproof, Fogproof & Shock-Resistant: Nitrogen-purged, O-ring sealed glass tube handles harsh conditions and heavy recoil.
- Made in USA with Trijicon Warranty
Technical Specifications for Trijicon Credo 1‑6×24 FFP Riflescope Red MRAD Segmented Circle Reticle
|
Specification |
Details |
|
Manufacturer |
Trijicon |
|
Model / MPN |
CR624‑C‑2900023 |
|
SKU |
CR624‑C‑2900023 |
|
UPC |
719307403673 |
|
Country of Origin |
USA |
|
Magnification |
1–6× variable (FFP) |
|
Objective Lens Diameter |
24 mm |
|
Tube Diameter |
30 mm |
|
Reticle |
Red MRAD Segmented Circle (FFP, LED) |
|
Illumination |
LED with 10 brightness levels & OFF detents |
|
Eye Relief |
3.5″–3.9″ (≈89–99 mm) |
|
Field of View @100 yd |
113.4 ft (1×) – 18.8 ft (6×) |
|
Exit Pupil |
12.0–4.1 mm |
|
Adjustment Click Value |
0.1 MRAD per click |
|
Total Adjustment Range |
±29.1 MRAD windage & elevation |
|
Parallax |
Fixed at 100 yd |
|
Overall Length |
10.9″ (276.9 mm) |
|
Weight |
18.9 oz (536 g) |
|
Material |
6061‑T6 aluminum; matte black anodized |
|
Optical Coatings |
Fully multi-coated broadband glass |
|
Waterproof / Fogproof |
O-ring sealed, nitrogen-purged |
|
Scope Tube Compatibility |
Standard 30 mm rings (not included) |
Included Accessories
- Trijicon Credo 1–6×24 Riflescope – CR624‑C‑2900023
- Bikini-style flip-up lens covers
- Soft scopecoat
- 3 mm hex key
- CR2032 battery
- Lens cloth
- Quick-reference guide & owner’s manual
- Trijicon logo sticker
- Warranty registration card
