Trijicon Credo 1-6x24 Riflescope Green BDC Segmented Circle .223/55gr Reticle
Trijicon Credo 1-6x24 Riflescope Green BDC Segmented Circle .223/55gr Reticle
Couldn't load pickup availability
Trijicon Credo 1-6x24 Riflescope Green BDC Segmented Circle .223/55gr Reticle
Features
- True 1–6× LPVO: Provides quick reflex shooting at 1× and precise target engagement at 6× magnification.

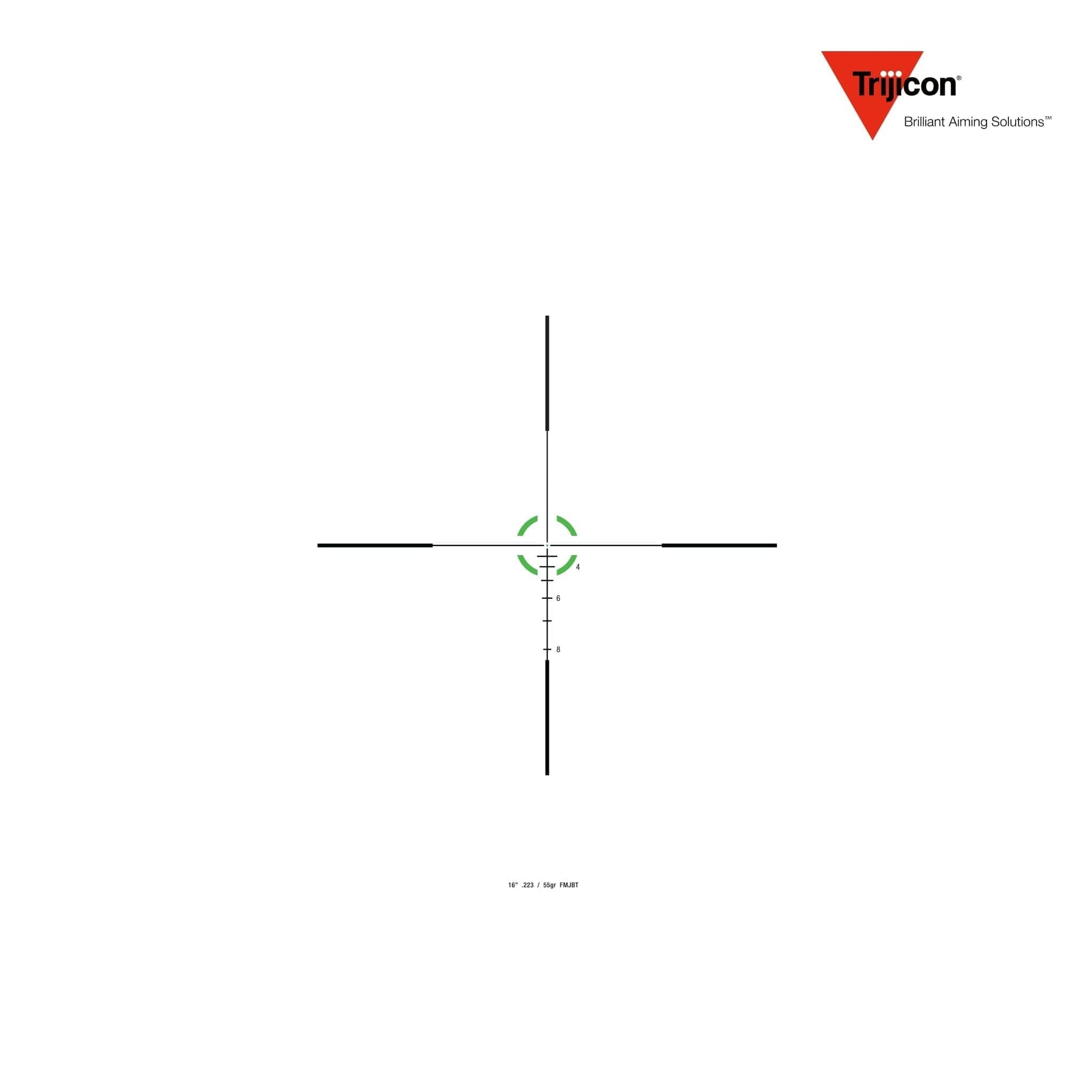

- Green BDC Segmented Circle Reticle: LED-illuminated reticle calibrated for .223 Remington / 5.56 NATO 55-grain ammunition, designed for fast ranging and holdovers.
- 10 Illumination Settings with OFF Detents: Adjustable brightness with OFF positions between each level for safe and efficient control.
- Wide Field-of-View & Optical Clarity: Fully multi-coated broadband lenses deliver excellent image clarity and contrast across the zoom range.
- Rugged 30 mm Tube Construction: Aircraft-grade 6061-T6 aluminum body is waterproof, fog-proof, and built to endure recoil and harsh conditions.
- ¼-MOA Capped Turrets: Precision click adjustments with 100 MOA of windage and elevation travel; low-profile and tool-adjustable.
- Bindon Aiming Concept (BAC): Enables both-eyes-open shooting for enhanced speed and awareness at lower magnification.
- Fast-Focus Eyepiece: Allows rapid diopter adjustment for user-specific eye relief.
- Compact & Lightweight: At 10.9″ and just under 19 oz, this optic suits agile AR builds without excessive weight.
Technical Specifications for Trijicon Credo 1-6x24 Riflescope Green BDC Segmented Circle .223/55gr Reticle
|
Specification |
Details |
|
Manufacturer |
Trijicon |
|
Model / MPN |
CR624-C-2900016 |
|
SKU |
CR624-C-2900016 |
|
UPC |
719307403031 |
|
Country of Origin |
Japan |
|
Magnification |
1–6× variable |
|
Objective Lens Diameter |
24 mm |
|
Tube Diameter |
30 mm |
|
Reticle |
Green BDC Segmented Circle (.223/55gr), LED-illuminated, Second Focal Plane |
|
Illumination |
LED, 10 brightness settings with OFF detents |
|
Eye Relief |
3.5″–3.9″ (≈89–99 mm) |
|
Field of View @ 100 yd |
113.4 ft (1×) – 18.8 ft (6×) |
|
Exit Pupil |
12.0 mm (1×) – 4.1 mm (6×) |
|
Adjustment Click Value |
¼ MOA per click |
|
Total Adjustment Range |
100 MOA windage and elevation |
|
Parallax Setting |
Fixed at 100 yd |
|
Overall Length |
10.9″ (276.9 mm) |
|
Weight |
18.9 oz (536 g) |
|
Housing Material / Finish |
6061-T6 aluminum, matte black anodized |
|
Optical Coatings |
Fully multi-coated, anti-reflective broadband glass |
|
Waterproof / Fog-Proof |
Nitrogen-purged, O-ring sealed |
|
Mount Compatibility |
Fits standard 30 mm rings (not included) |
Included Accessories
- Trijicon Credo 1-6x24 Riflescope – CR624-C-2900016
- Bikini-style flip-up lens covers
- Scopecoat soft cover
- 3 mm hex key
- CR2032 battery
- Lens cleaning cloth
- User manual and warranty card
- Trijicon logo sticker
