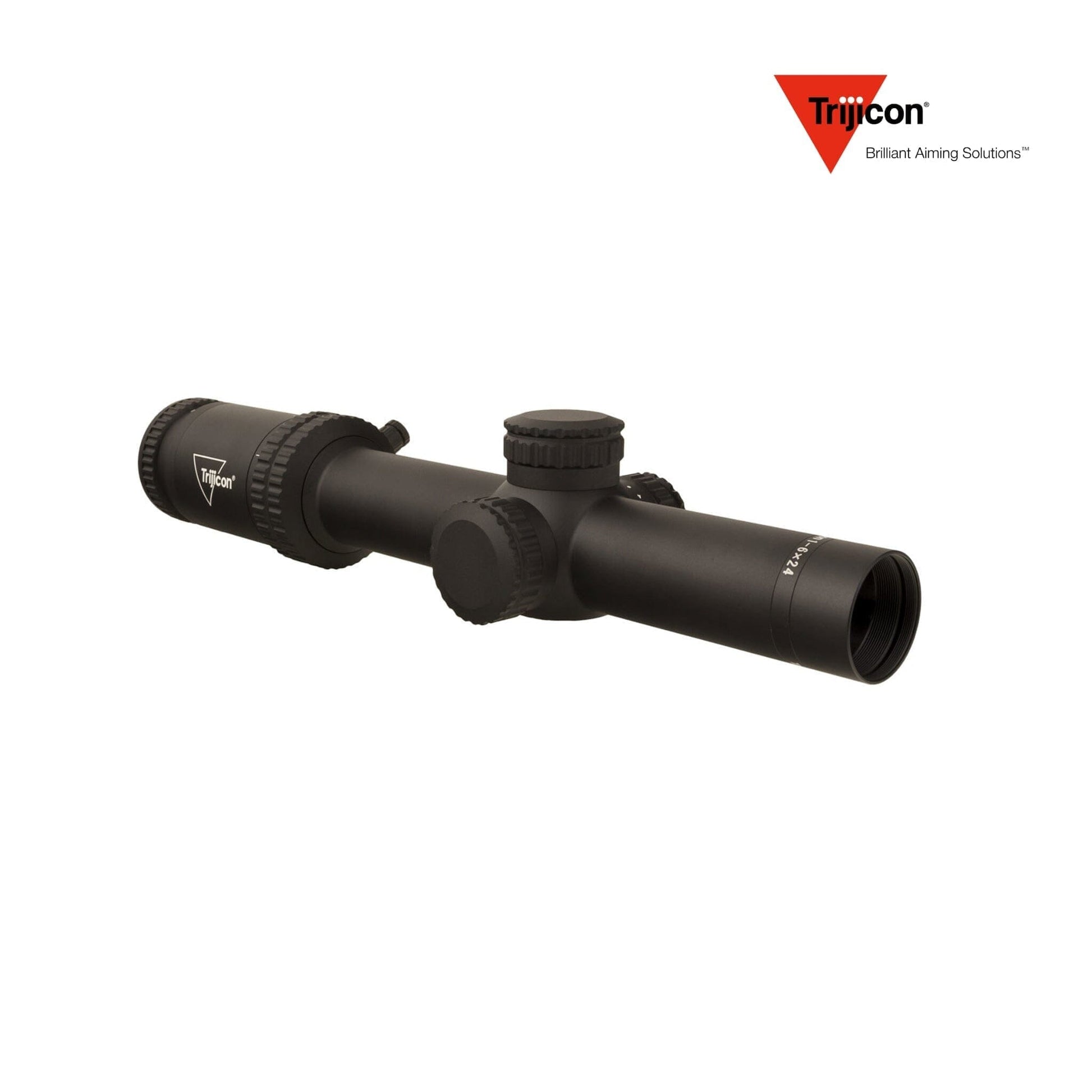

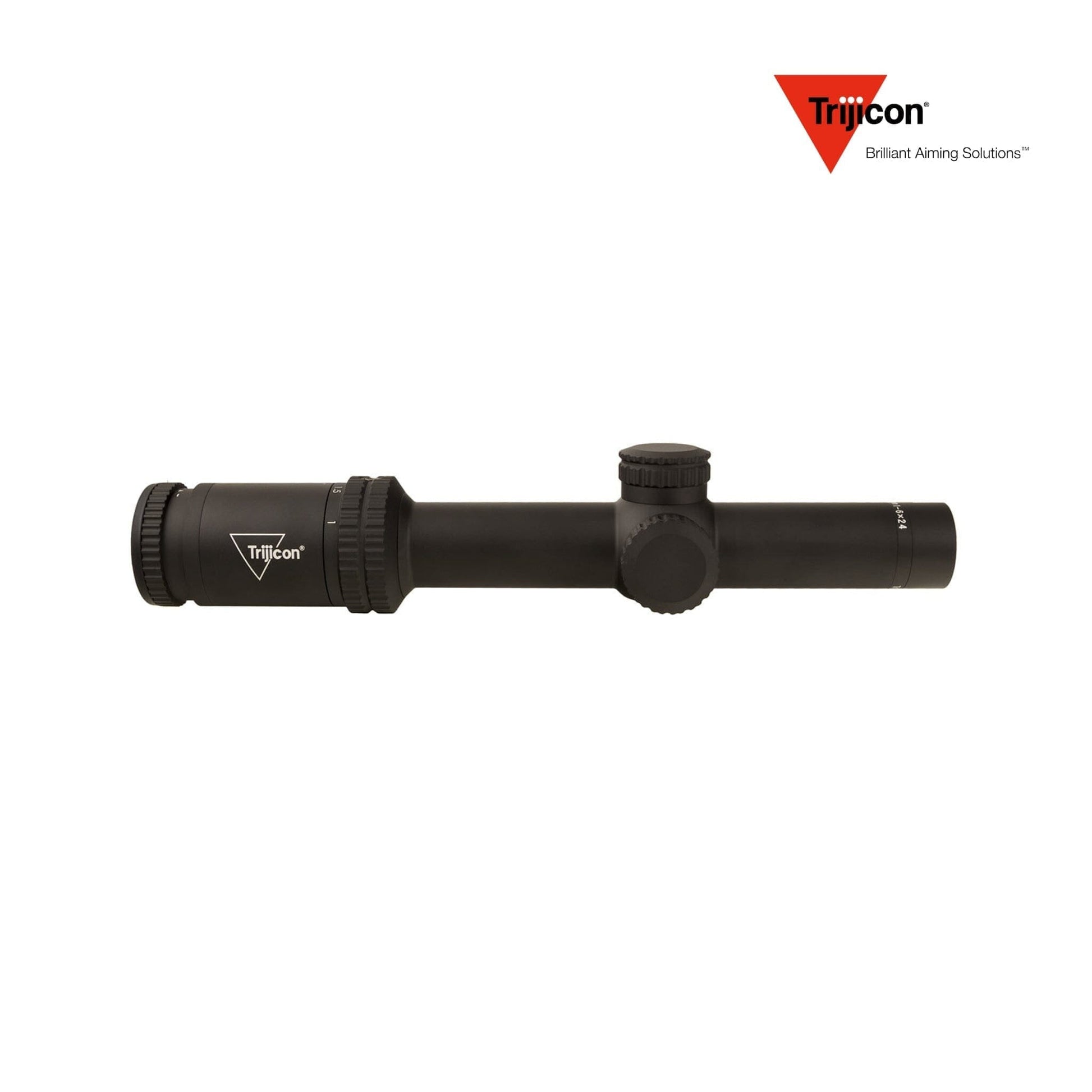

Trijicon Credo 1-6x24 Riflescope Green MRAD Segmented Circle Reticle
Trijicon Credo 1-6x24 Riflescope Green MRAD Segmented Circle Reticle
Couldn't load pickup availability
Trijicon Credo 1-6x24 Riflescope Green MRAD Segmented Circle Reticle
Features
- True 1–6× First Focal Plane (FFP): Reticle scales accurately with magnification, enabling precise holdovers at any zoom level.
- Green MRAD Segmented Circle Reticle: LED-illuminated for fast target acquisition and accurate ranging with 0.1 MRAD graduations.
- 10 Illumination Settings with OFF Detents: Easy-to-access brightness settings with OFF positions between levels to prevent accidental activation.
- Wide Field of View: Approximately 113 feet at 1× and 18.8 feet at 6×, ideal for both situational awareness and longer-range precision.
- Rugged 30 mm Main Tube: Constructed from 6061-T6 aircraft-grade aluminum, built to be waterproof, fog-proof, and shock-resistant.
- Low-Profile Turrets: 0.1 MRAD per click with capped windage and elevation turrets, offering up to ±29.1 MRAD of total travel.
- Fast-Focus Eyepiece: Allows quick diopter adjustment for individual shooters.
- Bindon Aiming Concept (BAC): Supports both-eyes-open shooting for rapid engagement at low magnification.
- Built for Durability: Made in Japan and tested to meet Trijicon’s rugged performance standards.
Technical Specifications for Trijicon Credo 1-6x24 Riflescope Green MRAD Segmented Circle Reticle
|
Specification |
Details |
|
Manufacturer |
Trijicon |
|
Model / MPN |
CR624-C-2900024 |
|
UPC |
719307403680 |
|
Country of Origin |
Japan |
|
Magnification |
1–6× variable (First Focal Plane) |
|
Objective Lens Diameter |
24 mm |
|
Tube Diameter |
30 mm |
|
Reticle |
Green MRAD Segmented Circle (FFP, LED-illuminated) |
|
Illumination |
LED, 10 brightness levels with OFF detents |
|
Eye Relief |
3.5″–3.9″ (approx. 89–99 mm) |
|
Field of View @ 100 yd |
113 ft (1×) – 18.8 ft (6×) |
|
Exit Pupil |
12.0–4.1 mm |
|
Adjustment Click Value |
0.1 MRAD per click |
|
Total Adjustment Range |
±29.1 MRAD windage and elevation |
|
Parallax Setting |
Fixed at 100 yd |
|
Overall Length |
10.9″ (276.9 mm) |
|
Weight |
18.9 oz (535 g) |
|
Housing Material / Finish |
6061-T6 aluminum, matte black anodized |
|
Optical Coatings |
Fully multi-coated, anti-reflective broadband glass |
|
Waterproof / Fog-Proof |
Nitrogen-purged, O-ring sealed |
|
Mount Compatibility |
Fits standard 30 mm scope rings (not included) |
Included Accessories
- Trijicon Credo 1-6x24 Riflescope – CR624-C-2900024
- Flip-up lens covers
- Scopecoat soft cover
- 3 mm hex key
- CR2032 battery
- Lens cleaning cloth
- Owner’s manual and warranty card
- Trijicon logo sticker
