Trijicon RMR HD Adjustable LED Red Dot Sight - 1 MOA Dot with 55 MOA Ring
Trijicon RMR HD Adjustable LED Red Dot Sight - 1 MOA Dot with 55 MOA Ring
Couldn't load pickup availability
Trijicon RMR HD Adjustable LED Red Dot Sight - 1 MOA Dot with 55 MOA Ring
Features

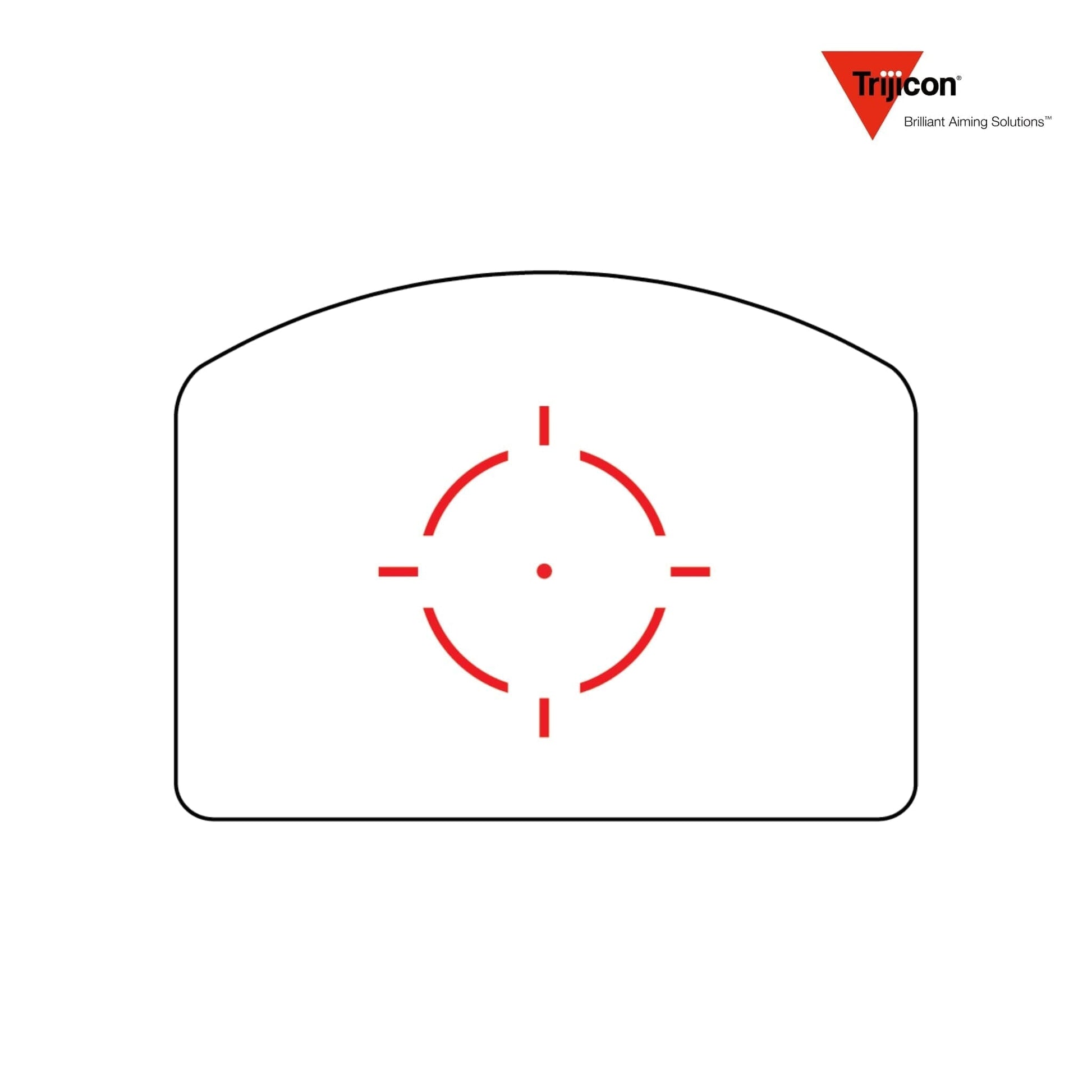

- 1 MOA Dot with 55 MOA Ring Reticle – Dual reticle configuration provides precision for long-range aiming with the dot and quick target acquisition with the large circle.
- Forward-Mounted Light Sensor – Measures target-facing light conditions to dynamically adjust reticle brightness, helping prevent reticle washout in high-contrast environments.
- Manual & Automatic Brightness Settings – Offers 9 brightness levels, including 3 night-vision compatible and 1 super-bright setting, plus a lock-out mode to retain preferred brightness.
- Top-Loading CR2032 Battery – Battery compartment allows for convenient battery changes without removing the optic; delivers over 3 years of runtime at mid-setting.
- 7075‑T6 Forged Aluminum Housing – Rugged, impact-resistant design featuring Trijicon’s signature shape to deflect shock and protect internal components.
- True-Color Multi-Coated Lens – Provides a clear and undistorted sight picture with excellent light transmission and minimal color shift.
- Open‑Emitter LED Design – Compact and lightweight with the same footprint as the Trijicon RMR for cross-compatibility with existing mounts and slide cuts.
- Waterproof & Fog‑Proof – Submersible up to 66 feet (20 meters) and nitrogen-purged to prevent fogging under extreme temperature changes.
- Made in the USA – Built to military and law enforcement standards for maximum reliability and performance in critical situations.
Technical Specifications for Trijicon RMR HD Adjustable LED Red Dot Sight – 1 MOA Dot with 55 MOA Ring
|
Specification |
Details |
|
Manufacturer |
Trijicon |
|
Model / MPN |
RMHD1‑C‑3200001 |
|
SKU |
RMHD1‑C‑3200001 |
|
UPC |
719307619210 |
|
Magnification |
1× |
|
Objective Lens Diameter |
22.6 × 17.2 mm |
|
Reticle |
1 MOA Red Dot with 55 MOA Ring |
|
Brightness Settings |
9 (3 night-vision compatible, 1 super-bright) |
|
Adjustment Click Value |
1 MOA per click; 135 MOA total travel |
|
Battery Type |
CR2032 (top-loading) |
|
Battery Life |
Over 3 years at mid-brightness |
|
Emitter Type |
Open‑Emitter LED |
|
Eye Relief |
Unlimited |
|
Length |
2.15″ (54.6 mm) |
|
Width |
1.27″ (32.3 mm) |
|
Height |
1.19″ (30.2 mm) |
|
Weight |
1.69 oz (48 g) including battery |
|
Housing Material |
Forged 7075‑T6 Aluminum |
|
Finish |
Matte Black |
|
Mount Type |
Standard RMR footprint; mount not included |
|
Waterproof / Fog‑Proof |
Submersible to 66 ft (20 m); nitrogen-purged |
|
Warranty |
Electronics: 5 years; Housing: Limited Lifetime |
|
Country of Origin |
USA |
Included Accessories
- Trijicon RMR HD 1 MOA Dot with 55 MOA Ring Sight (Matte Black)
- CR2032 Battery (installed)
- T10 Torx Key
- Two #6‑32 × ½″ Torx Head Screws
- Two #6‑32 × 0.380″ Torx Head Screws
- User Manual
- Warranty Card
- Trijicon Logo Sticker
