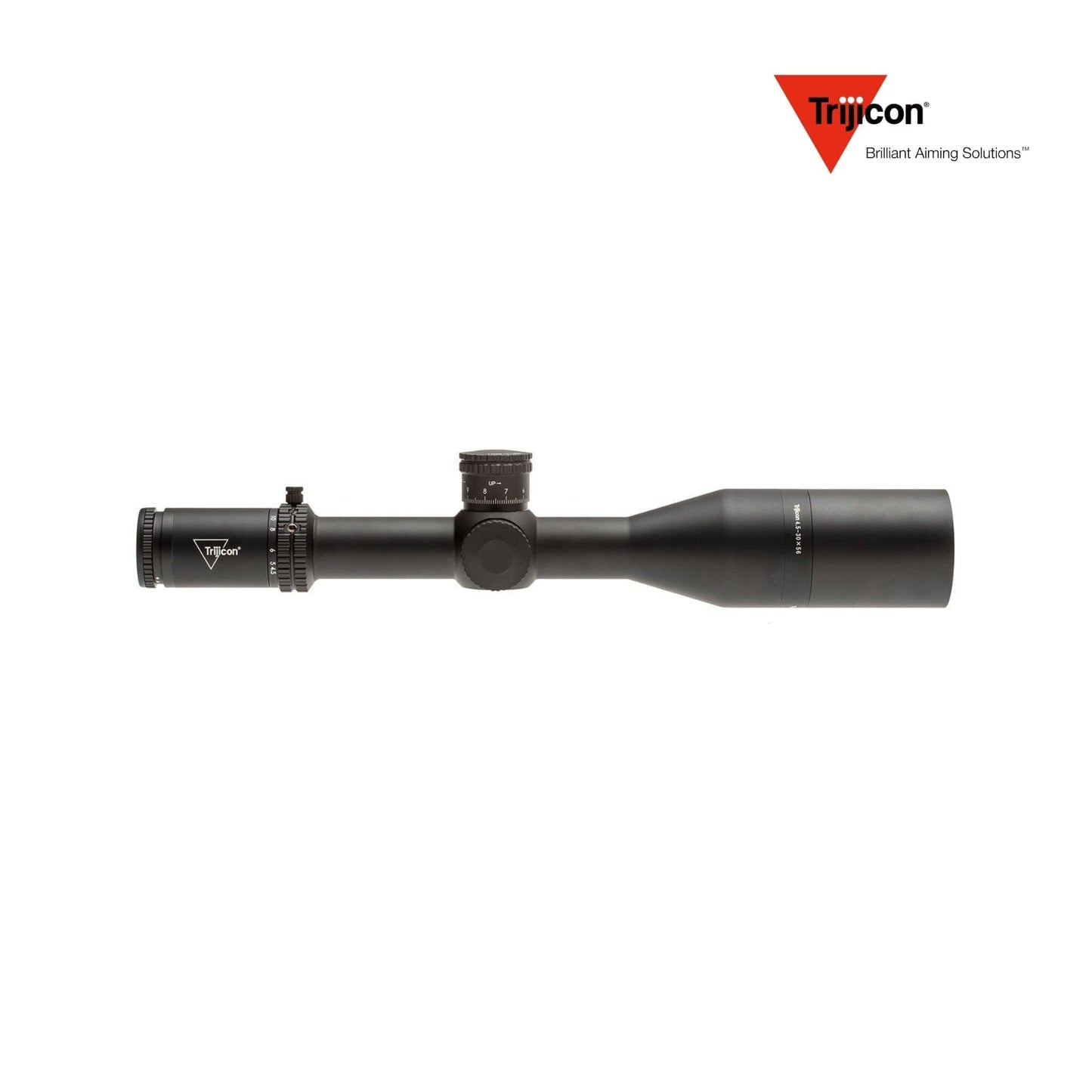

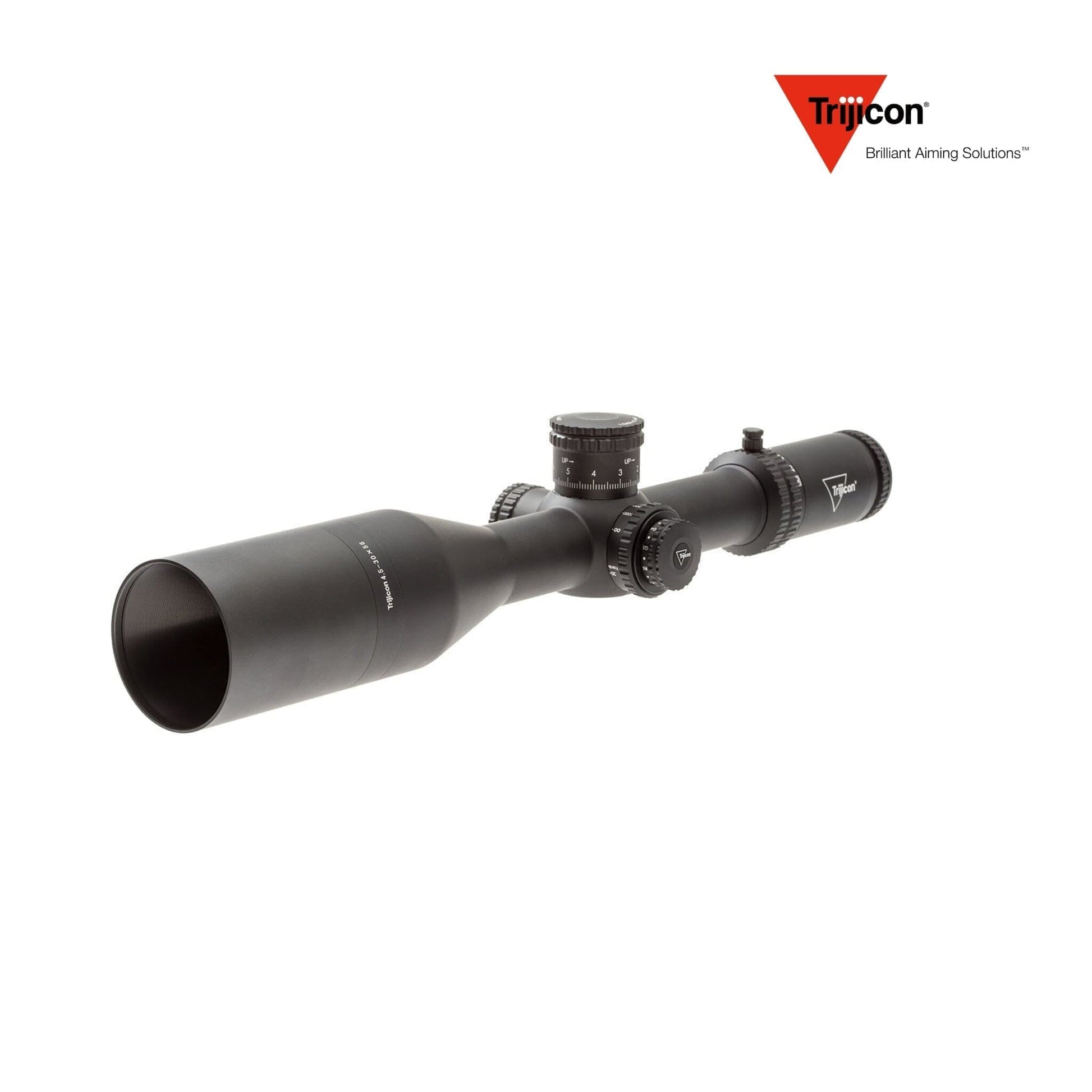

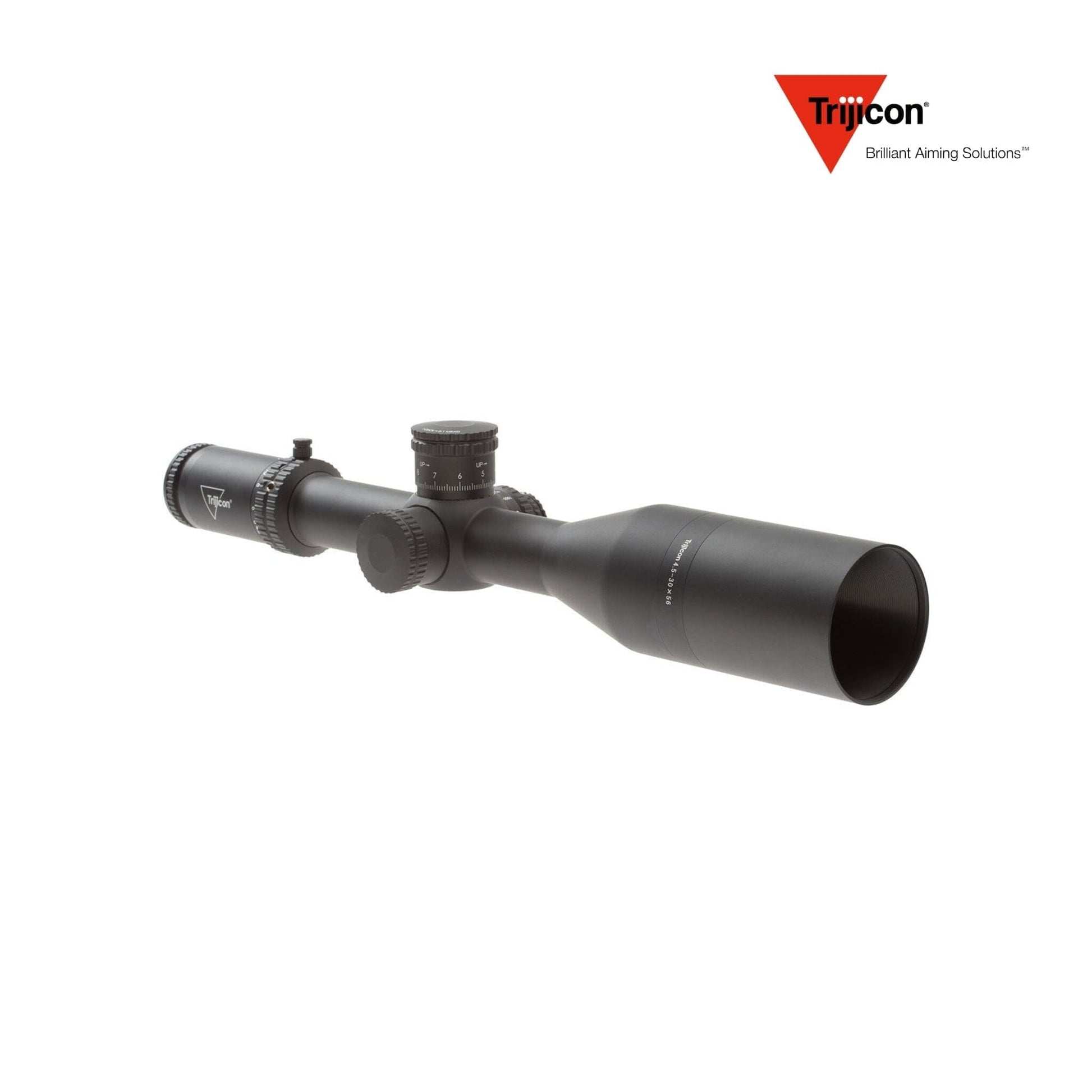

Trijicon Tenmile 4.5-30×56 Riflescope FFP MOA Precision Tree Reticle
Features
- 4.5–30× Variable Magnification – Smooth zoom range for precision at both medium and long distances.

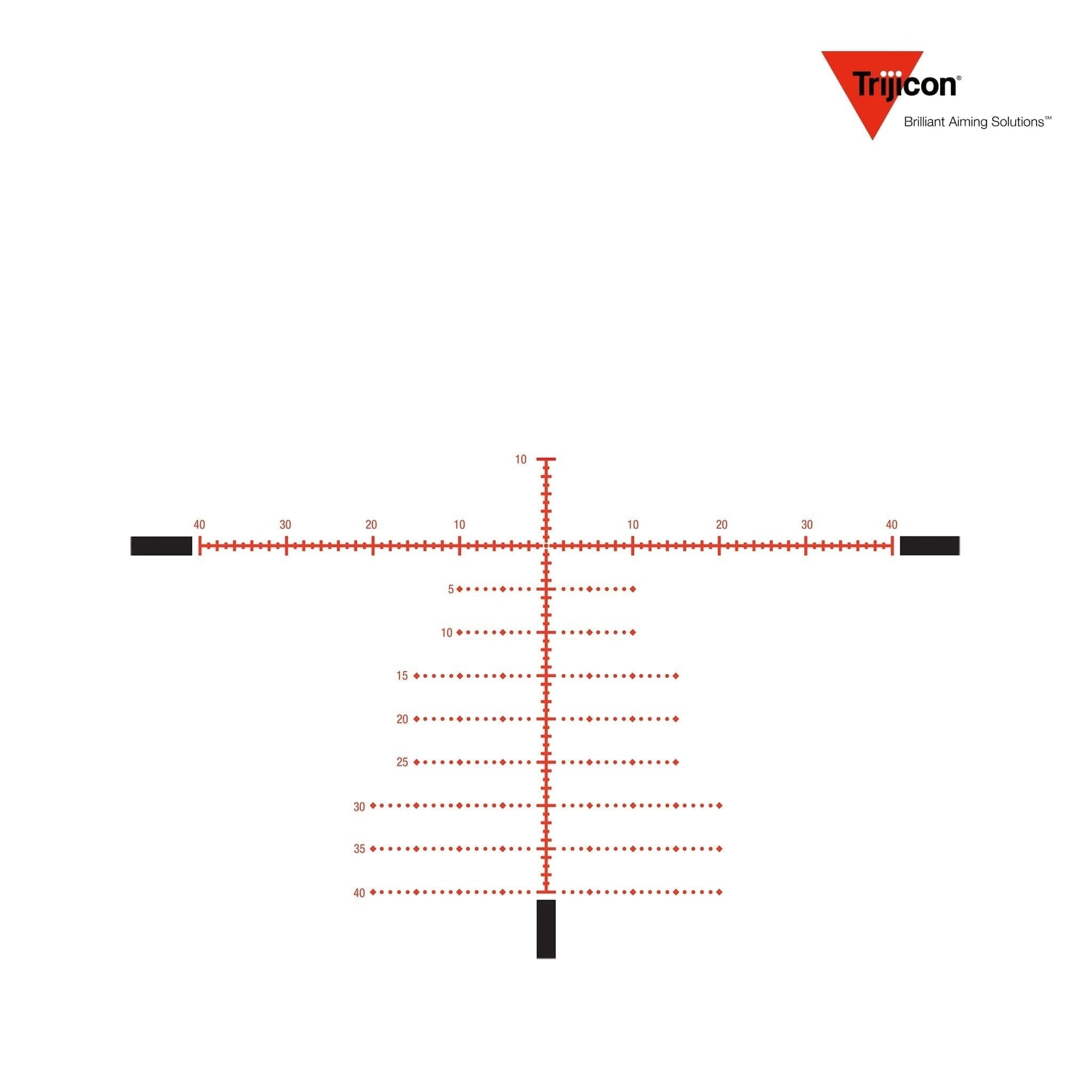

- First Focal Plane MOA Precision Tree Reticle – MOA-based Christmas-tree reticle with 1 MOA hash marks for elevation and wind holds, always accurate for subtensions.
- Red/Green LED Illumination – Five brightness settings per color with “off” positions between each for fast access.
- Exposed Zero‑Stop Exposed Turrets – ¼ MOA per click; 100 MOA elevation with zero-stop; 50 MOA capped windage.
- Large 56 mm Objective & 34 mm Tube – Boosts light transmission and structural rigidity.
- Fully Multi‑Coated Optics – Broadband coatings for clarity, color fidelity, and edge-to-edge sharpness.
- Side-Focus Parallax – Adjustable from 20 yards to infinity for sharp imaging.
- Rugged Construction – Waterproof to 10 ft, nitrogen-purged, made from 6061‑T6 aluminum.
- Optics Made in Japan; Assembled by Trijicon – Premium optic performance paired with USA final assembly.
Technical Specifications for Trijicon Tenmile 4.5-30×56 Riflescope FFP MOA Precision Tree Reticle
Specification |
Details |
Manufacturer |
Trijicon |
Model / MPN |
TM3056‑C‑3000012 |
SKU |
TM3056‑C‑3000012 |
UPC |
719307403451 |
Magnification Range |
4.5–30× |
Objective Lens Diameter |
56 mm |
Tube Diameter |
34 mm |
Reticle |
MOA Precision Tree (First Focal Plane) |
Illumination Settings |
LED, Red/Green – 5 levels each |
Adjustment Click Value |
¼ MOA per click |
Elevation Travel |
100 MOA with zero-stop |
Windage Travel |
50 MOA (capped) |
Parallax Adjustment |
Side-focus, 20 yards to infinity |
Exit Pupil |
8.8–1.9 mm |
Eye Relief |
3.2–3.8″ (81–97 mm) |
Field of View @ 100 yds |
24.7–3.7 ft |
Length |
14.23–14.33″ (362–364 mm) |
Weight |
36 oz (1,020 g) |
Housing Material |
6061‑T6 Aluminum |
Finish |
Matte Black |
Waterproof / Fog‑Proof |
Submersible to 10 ft; nitrogen-purged |
Warranty |
Lifetime (optics); 5 years electronics |
Country of Origin |
Optics: Japan; Assembled in USA |
Included Accessories
- Sunshade
- Tenebraex Flip-up Lens Caps (front & rear)
- Neoprene Scopecoat
- Hex keys (3 mm & 1.5 mm)
- Repositionable Magnification Throw Lever + Screw
- CR2032 Battery (installed)
- Trijicon Logo Sticker
- User Manual & Warranty Card
