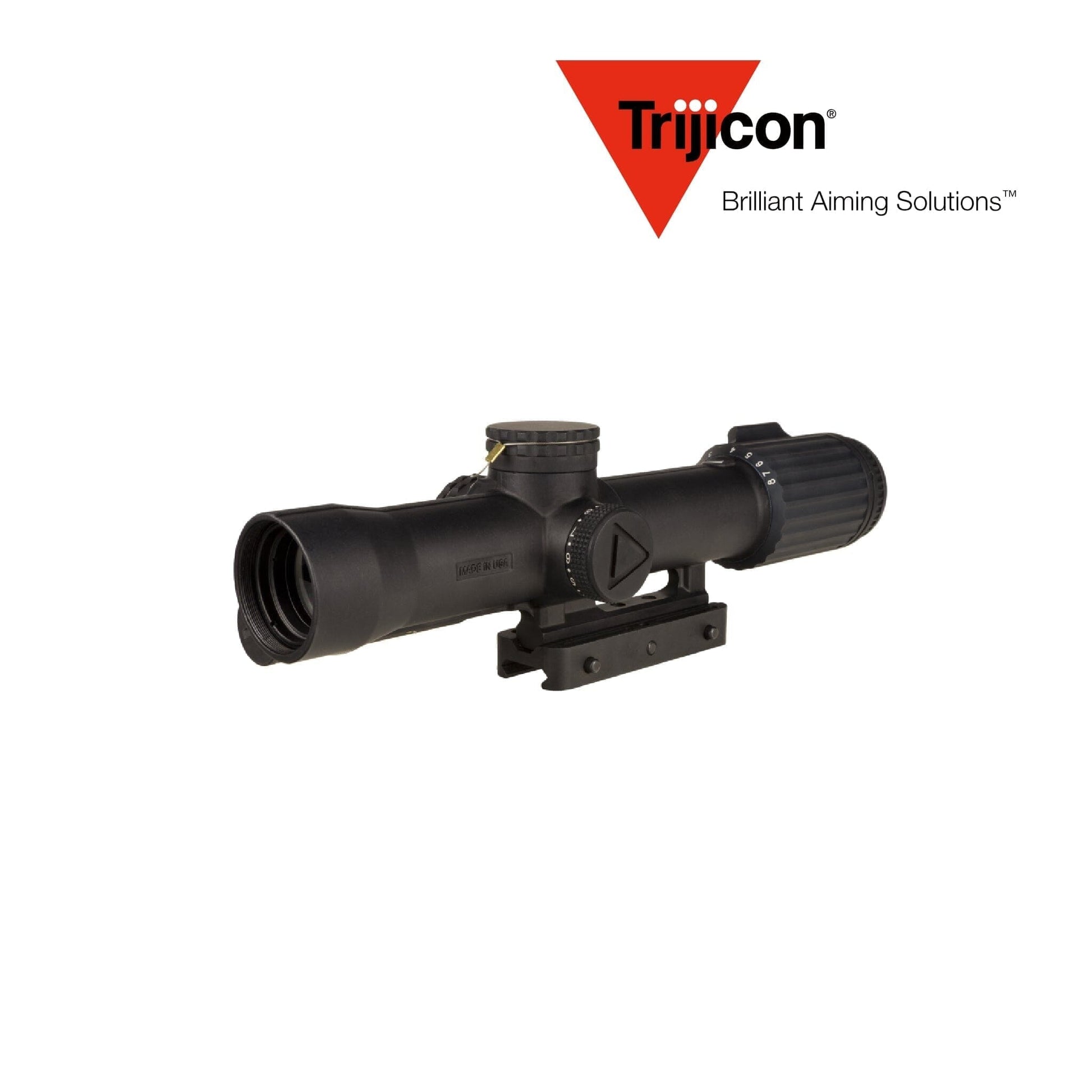

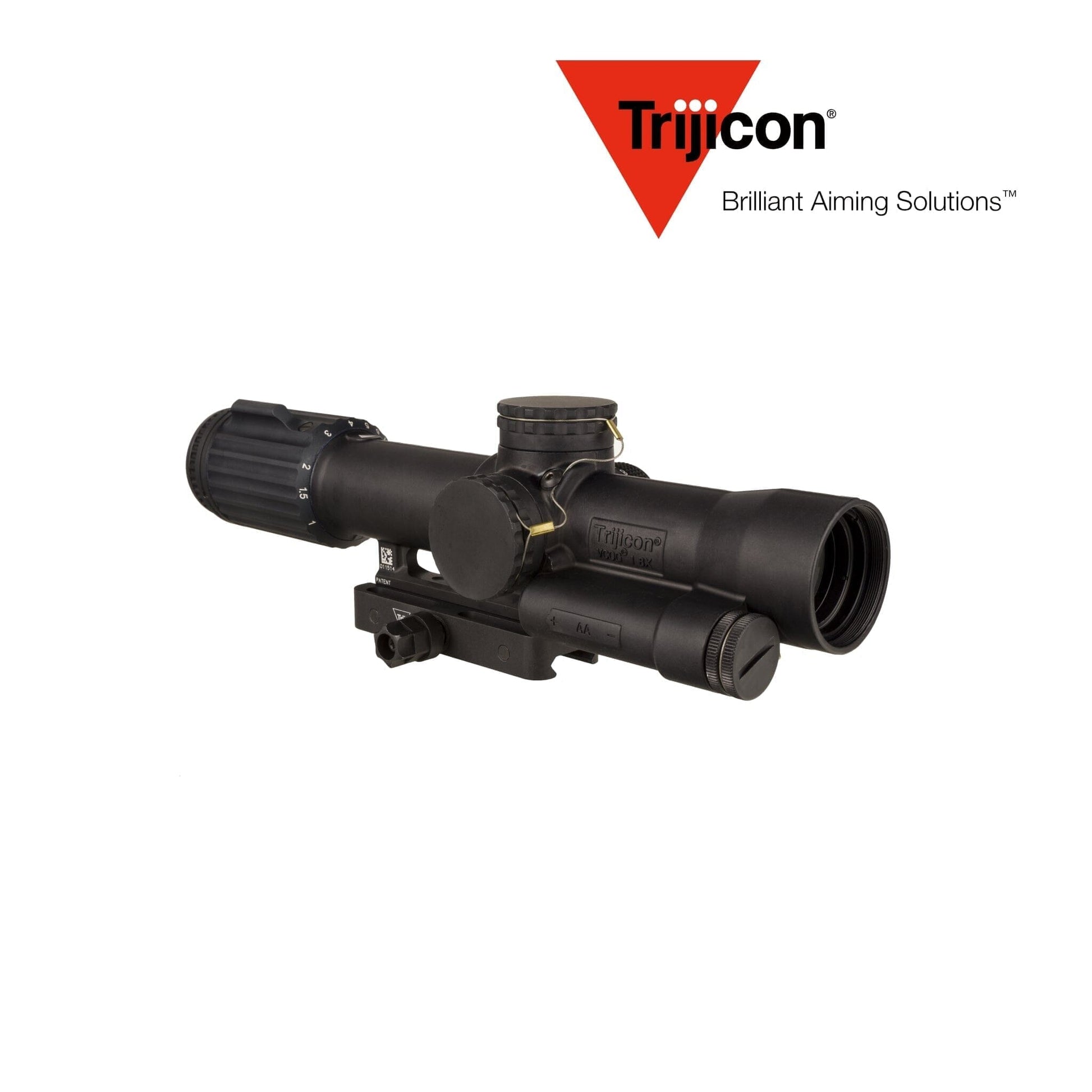

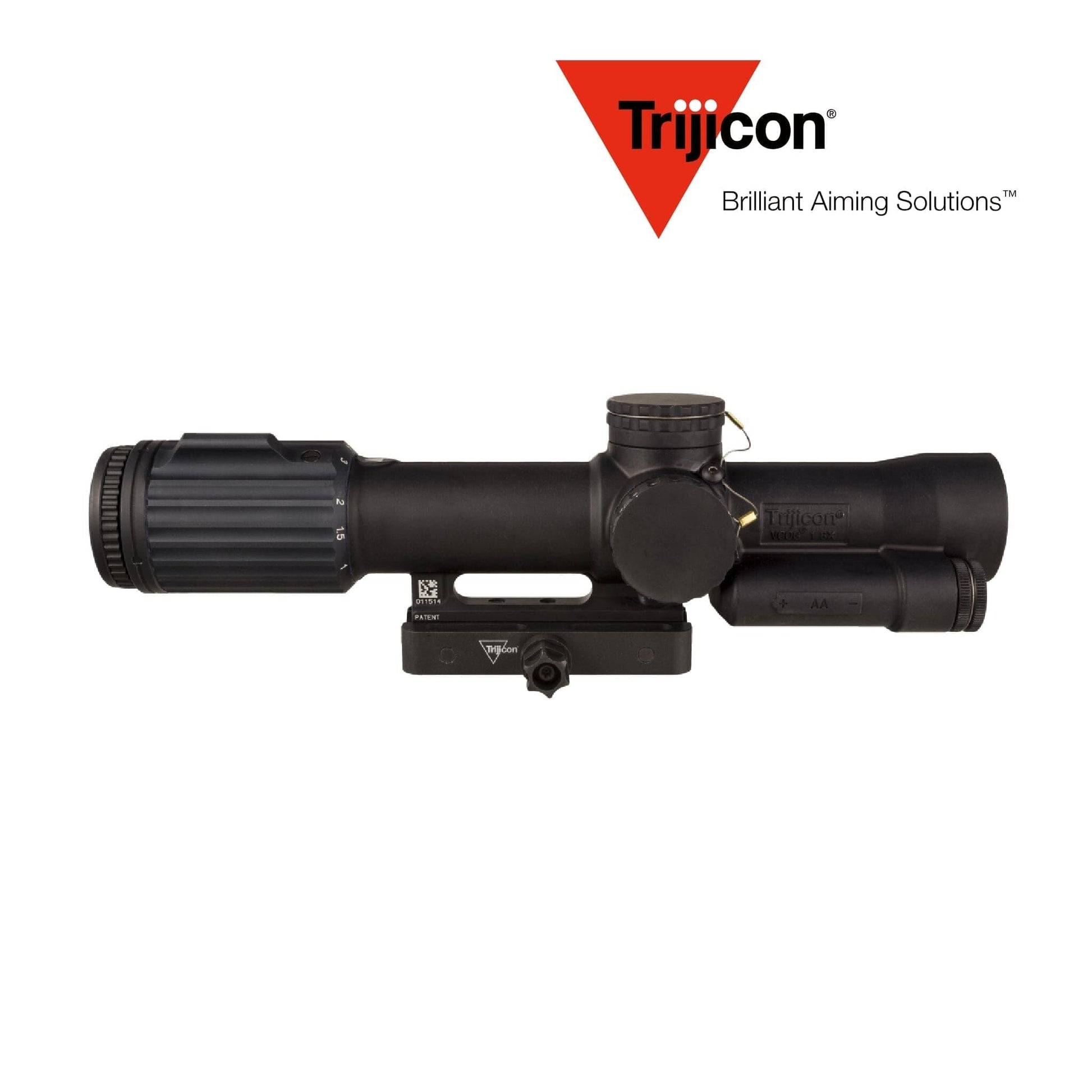

Trijicon VCOG 1-8x28 LED Riflescope Red MOA Crosshair Dot Reticle
Trijicon VCOG 1-8x28 LED Riflescope Red MOA Crosshair Dot Reticle
Couldn't load pickup availability
Trijicon VCOG 1-8x28 LED Riflescope Red MOA Crosshair Dot Reticle
Features
- 1–8× Variable Magnification – Flexible zoom from close-quarters to longer-range precision shooting.
- MOA Segmented Crosshair Reticle (FFP) – First focal plane design ensures accurate holdovers and range estimation at any magnification.
- Red LED Illumination – Eleven brightness levels (2 NV-compatible, 8 day, 1 super-bright) powered by an AA lithium battery.
- Forged 7075‑T6 Aluminum Housing – Built to military-grade durability standards with rugged, recoil-resistant construction.
- Near-Constant Eye Relief (~4″) – Maintains consistent eye position across the magnification range for rapid target acquisition.
- Wide Field of View – Approximately 109 ft at 1× down to 13 ft at 8× (per 100 yd), providing excellent situational awareness.
- Integrated Q-LOC Quick Release Mount – Tool-less, spring-loaded mount allows fast attachment/removal while maintaining zero.
- Waterproof & Fog‑Proof – Sealed and nitrogen-purged optics, rated submersible to 66 ft (20 m).
- Made in the USA – Precision-manufactured to rigorous military and professional standards.
Technical Specifications for Trijicon VCOG 1-8x28 LED Riflescope Red MOA Crosshair Dot Reticle
Specification |
Details |
Manufacturer |
Trijicon |
Model / MPN |
VC18‑C‑2400013 |
SKU |
VC18‑C‑2400013 |
UPC |
719307617131 |
Magnification Range |
1–8× |
Objective Lens Diameter |
28 mm |
Reticle |
MOA Segmented Crosshair (First Focal Plane) |
Illumination |
Red LED, 11 settings |
Reticle Focal Plane |
First Focal Plane |
Eye Relief |
4–3.9″ |
Field of View @ 100 yds |
109.2–13.1 ft |
Exit Pupil |
11.8–3.5 mm |
Tube Diameter |
34 mm |
Adjustment Click Value |
0.25 MOA per click |
Elevation/Windage Travel |
120 MOA total (20 MOA per revolution) |
Mount Type |
Integrated Q‑LOC quick‑release mount |
Battery Type |
AA lithium (included) |
Battery Life |
633 hours at brightness setting 6 |
Parallax |
Fixed (optimized for full range) |
Housing Material |
Forged 7075‑T6 Aluminum |
Finish |
Matte Black |
Waterproof / Fog‑Proof |
Submersible to 66 ft (20 m); nitrogen‑purged |
Length |
10.8″ (274 mm) |
Weight |
28.9 oz (819 g) including mount & battery |
Warranty |
Housing: Limited lifetime; Electronics: 5 years |
Country of Origin |
USA |
Included Accessories
- Trijicon VCOG 1–8×28 FFP Riflescope (MOA reticle)
- Integrated Q‑LOC Quick-Release Mount
- AA Lithium Battery (installed)
- LenSpen TA56
- Trijicon Logo Sticker
- User Manual
- Warranty Card
