Warne
Warne QD X-SKEL Quick-Detach Cantilever Scope Mount - 1″ Tube - Black
Warne QD X-SKEL Quick-Detach Cantilever Scope Mount - 1″ Tube - Black
Couldn't load pickup availability
Warne QD X-SKEL Quick-Detach Cantilever Scope Mount - 1″ Tube - Black
Features

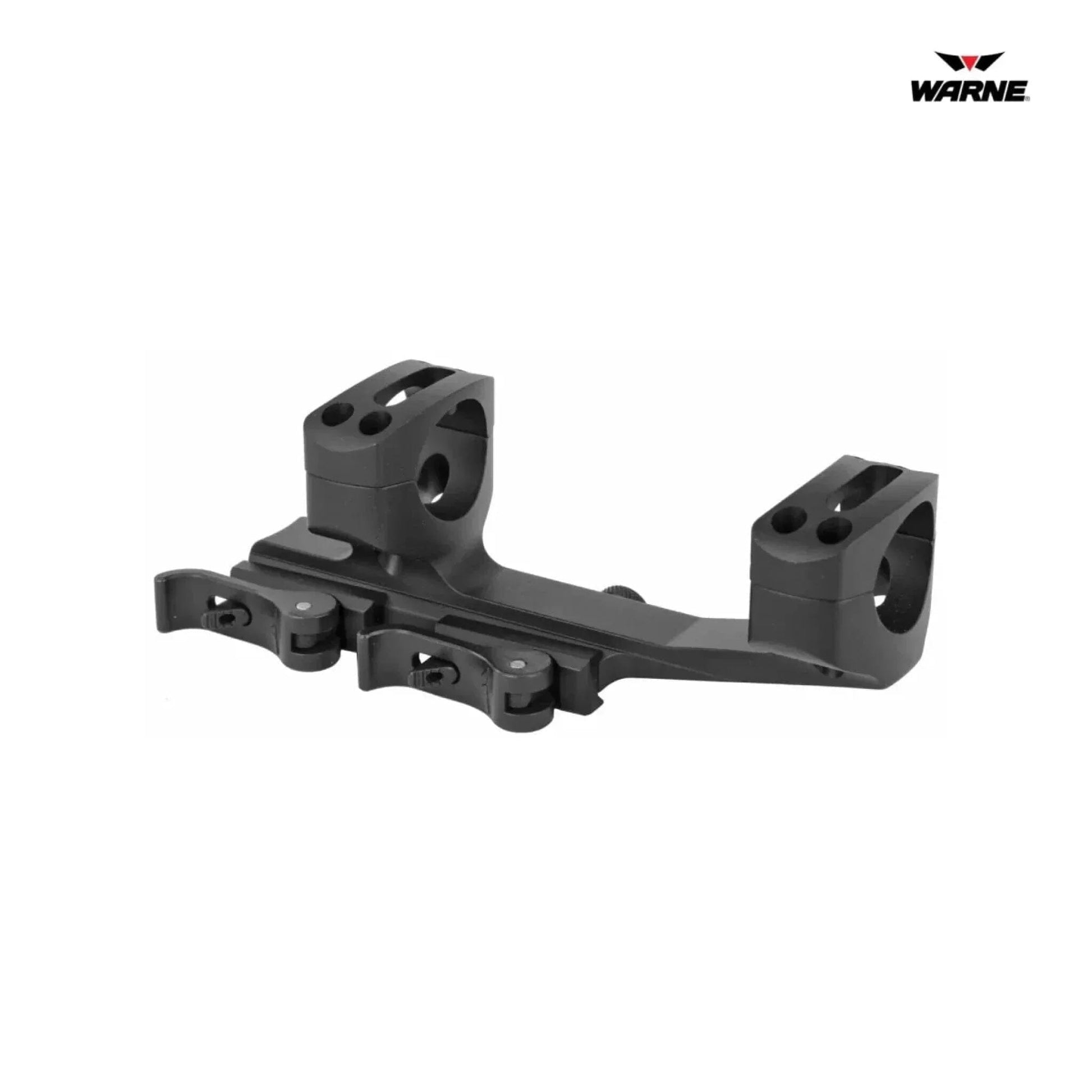

- Patent-Pending Dual QD Levers – Two spring-loaded levers provide rapid, tool-free attachment/removal with reliable return-to-zero performance.
- Skeletonized Cantilever Design – Forward-extended, one-piece mount gives extra eye relief for LPVOs and 24–56 mm objective scopes while reducing overall weight.
- MSR Ideal Height – Positions your optic at the optimal height for proper cheek weld and fast target acquisition on flat-top rifles.
- Premium Materials – CNC-machined 6061-T6 aluminum body with steel threaded inserts for durable, steel-on-steel contact at all fasteners.
- Made in the USA – Designed and manufactured in Warne’s Texas facility to exacting quality standards.
Technical Specifications for Warne QD X-SKEL Quick-Detach Cantilever Scope Mount - 1″ Tube - Black
|
Specification |
Details |
|
Manufacturer |
Warne Scope Mounts |
|
Model / Part Number |
QD X-SKEL Quick-Detach Cantilever / QDXSKEL1TW |
|
SKU |
QDXSKEL1TW |
|
UPC |
0656813106417 |
|
Tube Diameter |
1.00 in (25.4 mm) |
|
Objective Fit |
Up to 56 mm |
|
Height (Dim A) |
1.00 in (25.4 mm) |
|
Dimension B |
1.43 in (36.3 mm) |
|
Dimension C |
0.75 in (19.1 mm) |
|
Dimension D (Length) |
3.05 in (77.5 mm) |
|
Material |
6061-T6 aluminum; steel threaded inserts |
|
Finish |
Matte black anodize |
|
Weight |
8.2 oz (232 g) |
|
Mount Interface |
MIL-STD-1913 Picatinny rail |
|
Return-to-Zero |
Guaranteed under recoil |
|
Country of Origin |
USA |
|
Warranty |
Warne Lifetime Warranty |
Included Accessories
- Dual QD levers (installed)
- #8-32 Torx screws & steel inserts
- Installation instructions & warranty card
SEO Keywords
Warne QDXSKEL1TW, QD X-SKEL mount, skeletonized cantilever mount, MSR ideal height mount, 1″ tube QD scope mount.
