Warne

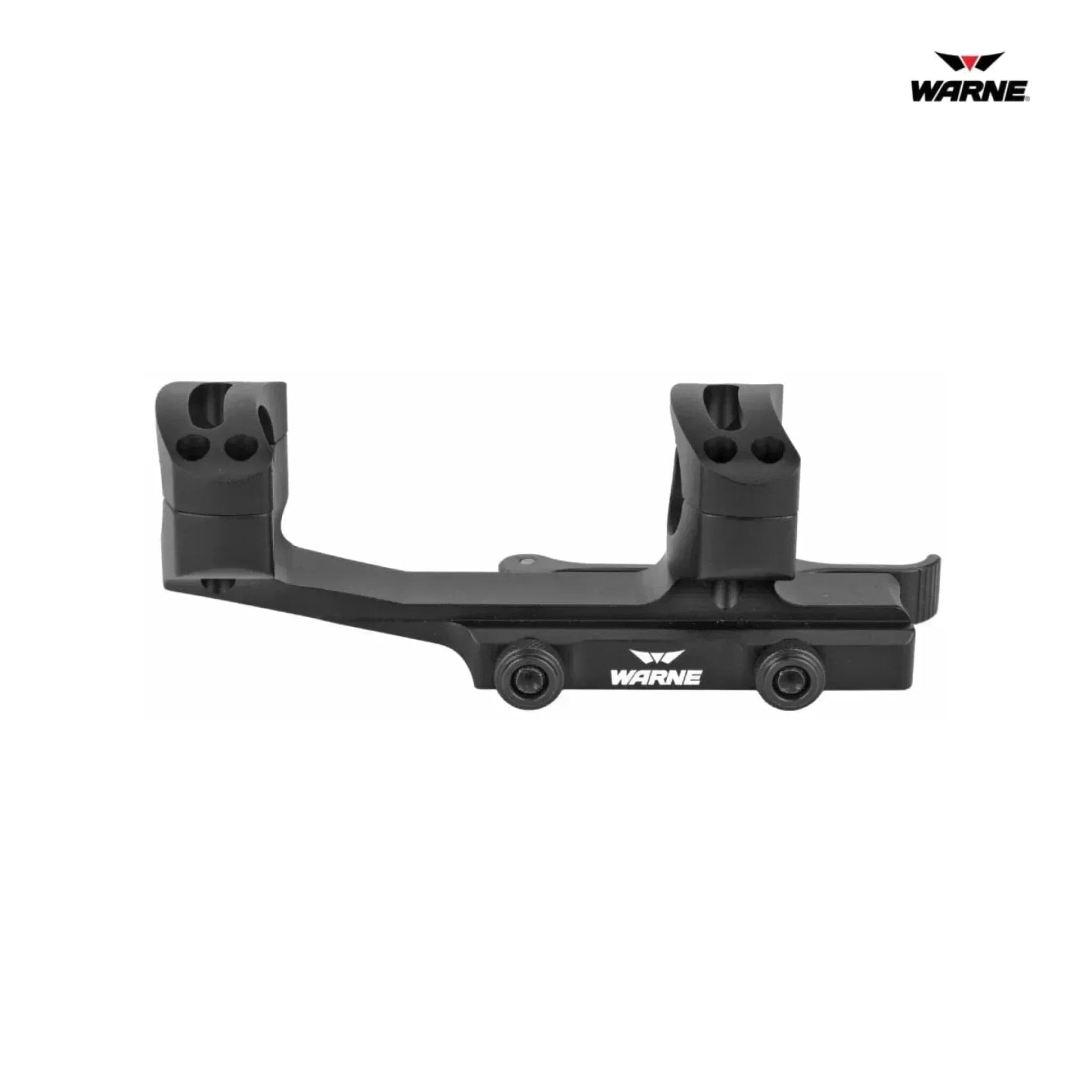

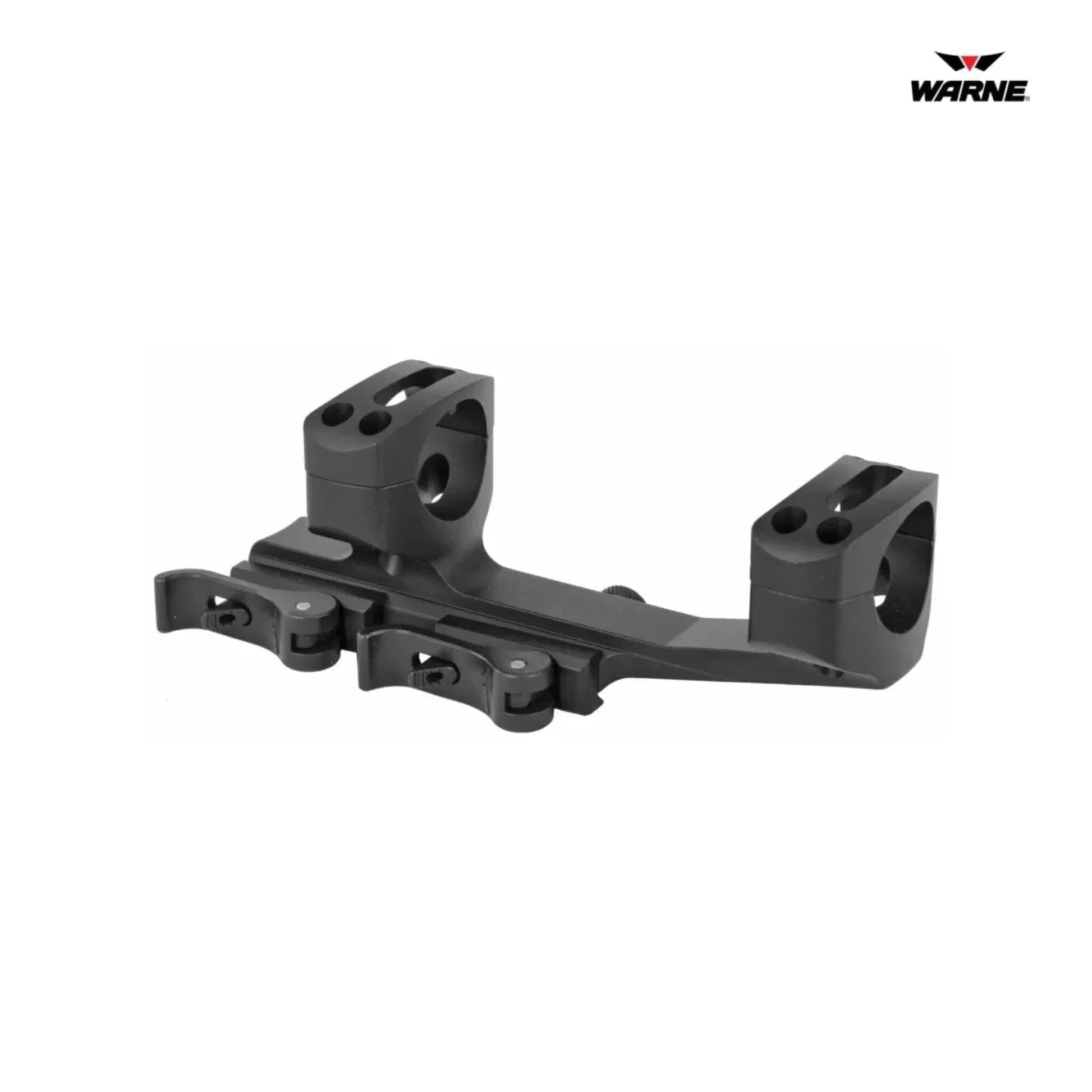

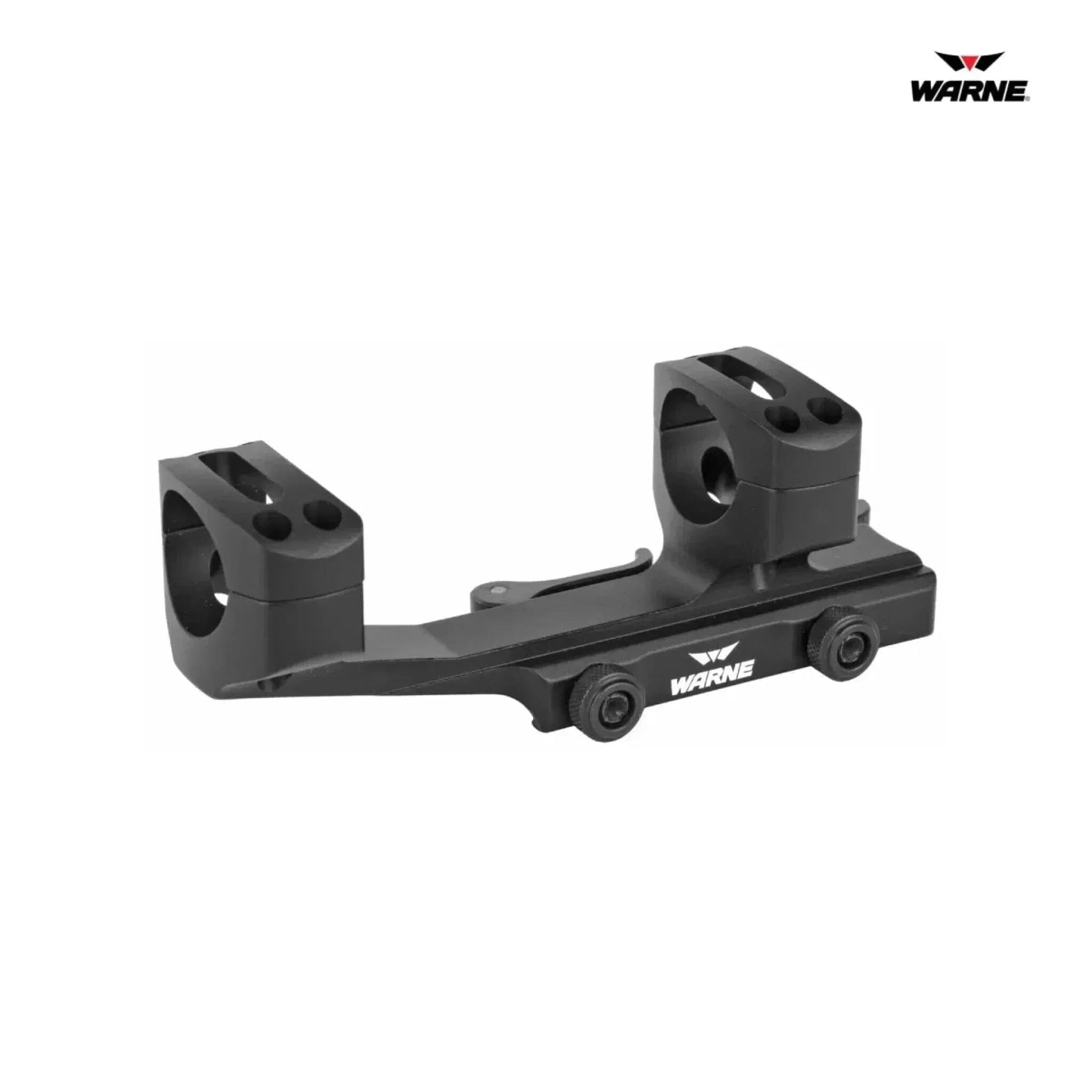

Warne QD X-SKEL Quick-Detach Cantilever Scope Mount - 34mm Tube - Black
Warne QD X-SKEL Quick-Detach Cantilever Scope Mount - 34mm Tube - Black
Couldn't load pickup availability
Warne QD X-SKEL Quick-Detach Cantilever Scope Mount - 34mm Tube - Black
Features
- Patent-Pending Dual QD Levers – Two spring-loaded levers allow rapid, tool-free attachment and removal with consistent return-to-zero performance.
- Skeletonized Cantilever Design – Forward-extended, one-piece mount provides extra eye relief for LPVOs and large-objective scopes while minimizing weight.
- MSR Ideal Height – Positions your optic at the optimal height for proper cheek weld and fast target acquisition on flat-top rifles.
- Premium Materials – CNC-machined 6061-T6 aluminum body with steel threaded inserts for durable, steel-on-steel contact at all fasteners.
- Made in the USA – Engineered and manufactured in Warne’s Texas facility to exacting quality standards.
Technical Specifications for Warne QD X-SKEL Quick-Detach Cantilever Scope Mount - 34mm Tube - Black
Specification |
Details |
Manufacturer |
Warne Scope Mounts |
Model / Part Number |
QD X-SKEL Quick-Detach Cantilever / QDXSKEL34TW |
SKU |
QDXSKEL34TW |
UPC |
0656813106431 |
Tube Diameter |
34 mm (1.34 in) |
Objective Fit |
Up to 56 mm |
Height (Dim A) |
1.43 in (36.3 mm) |
Dimension B |
1.43 in (36.3 mm) |
Dimension C |
0.75 in (19.1 mm) |
Dimension D (Length) |
3.05 in (77.5 mm) |
Material |
6061-T6 aluminum; steel threaded inserts |
Finish |
Matte-black anodize |
Weight |
8.5 oz (241 g) |
Mount Interface |
MIL-STD-1913 Picatinny rail |
Return-to-Zero |
Guaranteed under recoil |
Country of Origin |
USA |
Warranty |
Warne Lifetime Warranty |
Included Accessories
- Dual QD levers (installed)
- #8-32 Torx screws & steel inserts
- Installation instructions & warranty card
